Tiaano’s Platinized and MMO Coated Titanium Rod for Cathodic Protection

clock February 24, 2022 11:53 by author admin

Mixed Metal Oxide(MMO) coated titanium rod and Platinized Titanium rod anodes are to be designed & manufactured by Ti Anode Fabricators Pvt. Ltd, Chennai, India. Platinum is one of the noble group of metals also a precious metal, which has excellent catalyst materials. Platinum is conductive, chemically stable and highly resistant to oxidation and corrosion. It has a silvery-grey colour and can be polished to a variety of products.

Platinum is an excellent anode material due to its high conductivity and low consumption rate. MMO anodes have imperceptibly low wear rates and are often referred to as Dimensionally Stable Anodes as they do not change geometry over time. MMO anodes are quickly becoming the most popular impressed current anode.

Cathodic protection system is an important method of preventing corrosion in underground pipelines, storage tanks, petroleum pipelines, offshore and onshore platforms etc. Cathodic protection (CP) is a technique used to control the corrosion of a metal surface.

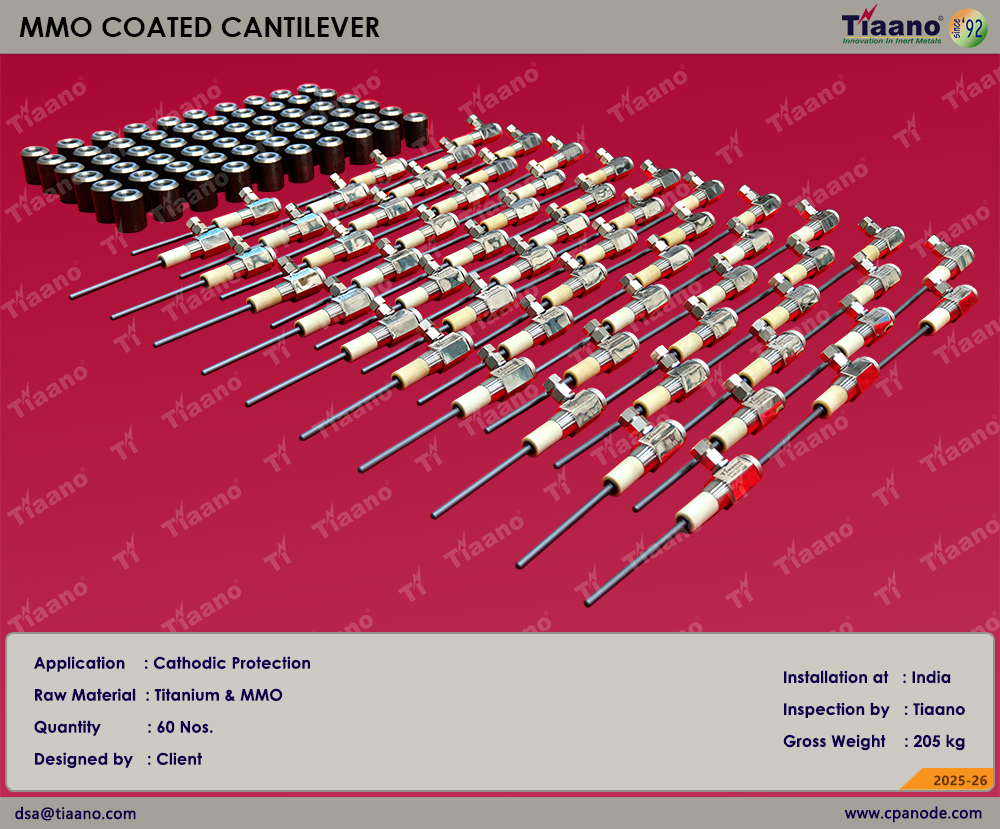

Platinized Titanium Rod and MMO Coated Titanium Rod are usually used in cantilever anode which is used for protecting pipeline internal, pump internal & condenser box internal for 30 years and more by applying DC current with transformer rectifier.

rodanode

Applications:

  • Deep & conventional ground beds.
  • Jetties in fresh, brackish and salt-water electrolytes.
  • Water tanks.
  • Lock Gates.
  • Intake Screens.

For more details visit these links:

www.cpanode.com,www.tiaanostore.in,www.tiaano.com

Follow us on:

Pinterest, Instagram, Facebook, Twitter

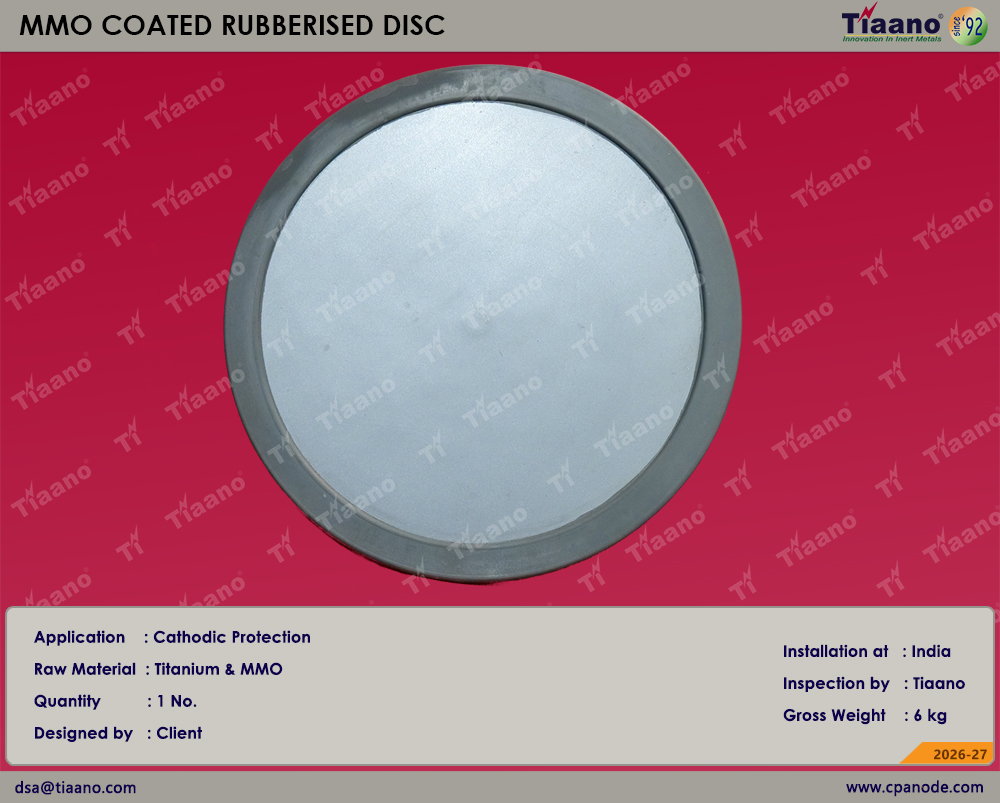

MMO Coated Titanium Rubberized Disc for Corrosion Free System

clock February 17, 2022 10:32 by author admin

Cathodic protection (CP) is a technique used to control the corrosion of a metal surface.The leading anti-corrosion character, outstanding physical & mechanical properties, uniform current distribution characters of titanium, niobium - its Platinised anodes and Mixed Metal Oxide coated anodes are strongly recommended for Impressed Current Cathodic Protection (ICCP) application.

Impressed Current Cathodic Protection systems are the ultimate solution for all corrosion problems to protect the metallic structure for long time and are recognized as a superior alternative to sacrificial anode systems which require frequent replacement. Impressed current cathodic protection systems are preferred by ship owners because they reduce fuel cost and maintenance.

MMO/Platinised Disc, Elliptical & Strip Anodes are developed specifically for protection of Dam and Navigation lock gates. Since our disk, elliptical & strip anodes are designed to operate in fresh, brackish and seawater environments - used in other suitable applications includes marine structures, water tanks and vessels. With an optional primary seal spacer gasket, it can be used on the inside of pipes, pumps, water tanks or other curved surfaces too.

Disc anodes can be installed in walls of ship hulls, condenser/water box, pump internal/external suction and discharge to protect for longer years. It will be insulated with rubberized mold to protect from erosion. When using MMO coated rubberized disc anode to protect the ship hull from sea water corrosion, external current are applied to convert high potential anodic sites on a ship hulls to low-potential cathodic sites. This ensures that ship hull surface is protected from corrosion.

Rubberised disc

Applications:

  • Marine Structures.
  • Pipeline Internals.
  • Condenser water box.
  • Water intake.

For more details visit these links:

www.cpanode.com,www.tiaanostore.in,www.tiaano.com

Follow us on:

insta fb twitter pinterest



Platinized Titanium FRP Insulated Strip for Ship Hull Protection

clock February 16, 2022 10:55 by author admin

Platinized Titanium anodes take advantage of the low consumption rate and high current density. Voltages in excess of 10 Volts will result in severe pitting of the titanium core causing premature failure. Exterior protection of ships hulls - anodes in the shape of plates, discs or strips. Platinum is a least reactive metals that has remarkable resistance to corrosion, even at high temperatures.

The principle of cathodic protection is connecting an external anode to the metal to be protected and the passing of an electrical DC current so that all areas of the metal surface become cathodic and therefore do not corrode. DC current is sent through an insulated wire to the anodes buried in the soil near the articles like underground storage tank, pipeline & etc.

Platinized FRP insulated strip Anode with impressed current leads to protect the hull of the ships. Negative terminal which is connected to ship hull and positive terminal with impressed current anodes. Underwater steel structures protection like wharves, jetties, sheet pile walls and piers. Usually rod type anodes are distributed throughout the structure for protection and to give a good current distribution.

FRP Strip

Advantages:

  • Increases life of rudders, shafts, struts and propellers.
  • Anodes are light and compact for easy shipping, storage and   installation.
  • High current efficiency.
  • High anti-corrosion property & lasting working life.

For more details visit these links:

www.cpanode.com,www.tiaanostore.in,www.tiaano.com

Follow us on:

Pinterest, Instagram, Facebook, Twitter



Manufacturing and Supply of MMO Coated Galvanized Canister Anode for Corrosion Protection

clock February 9, 2022 09:18 by author admin

Cathodic protection system is an important method of preventing corrosion in underground pipelines, storage tanks, petroleum pipelines, offshore and onshore platforms etc. Cathodic protection (CP) is a technique used to control the corrosion of a metal surface. Impressed current systems utilize an external power source that provides protective current to mitigate corrosion activity.

MMO or Platinised coating is an excellent electrical conductor and giving well chemical stability, when it will be coated on Titanium or Niobium base, even in very low pH environments. MMO coating greatly prolong the life of the anode (low wear rate) and provide excellent chemical corrosion resistance such as acid condition.

GI Canister anode is filled with petroleum coke fill that improvise the conductivity of MMO Coated Tube, Strip or wire where the soil not having conductivity. Petroleum coke fill with low sulfur will much suits for the high resistivity soil. Canister anodes are installed vertically besides the oil pipes to avoid corrosion and horizontally installed in Tank bottoms. After some time the GI pipes are get rusted and the petroleum coke fill will be inside the soil that keeps the conductivity.

Applications:

  • Shallow vertical and horizontal surface ground beds.
  • Underground storage tanks.
  • Above ground storage tanks.
  • Pipelines.

Different types of anodes in canister anode is MMO wire, tube, mesh, strip anode which is comprised of a precious metal oxide coating applied to a titanium base. The metal oxide coating is completely stable, and does not allow the object to corrode which we need to protect.
The stable anode element passes current to a highly conductive calcined petroleum coke breeze. This backfill is well compacted inside a galvanized steel canister. To allow moisture to quickly migrate to the coke breeze for increased electrical conductivity, the MMO anode element is electrically connected to the steel canister - thereby accelerating the canister corrosion rate once the anode has been installed and energized.

Galvanised canister anode

Advantages:

  • Twice the life
  • Unbreakable
  • Light weight
  • Easier to install
  • Narrower trench
  • Easy to centralize
  • Reduce excavation and drilling cost.

For more details visit these links:

www.cpanode.com,www.tiaanostore.in,www.tiaano.com

Follow us on:

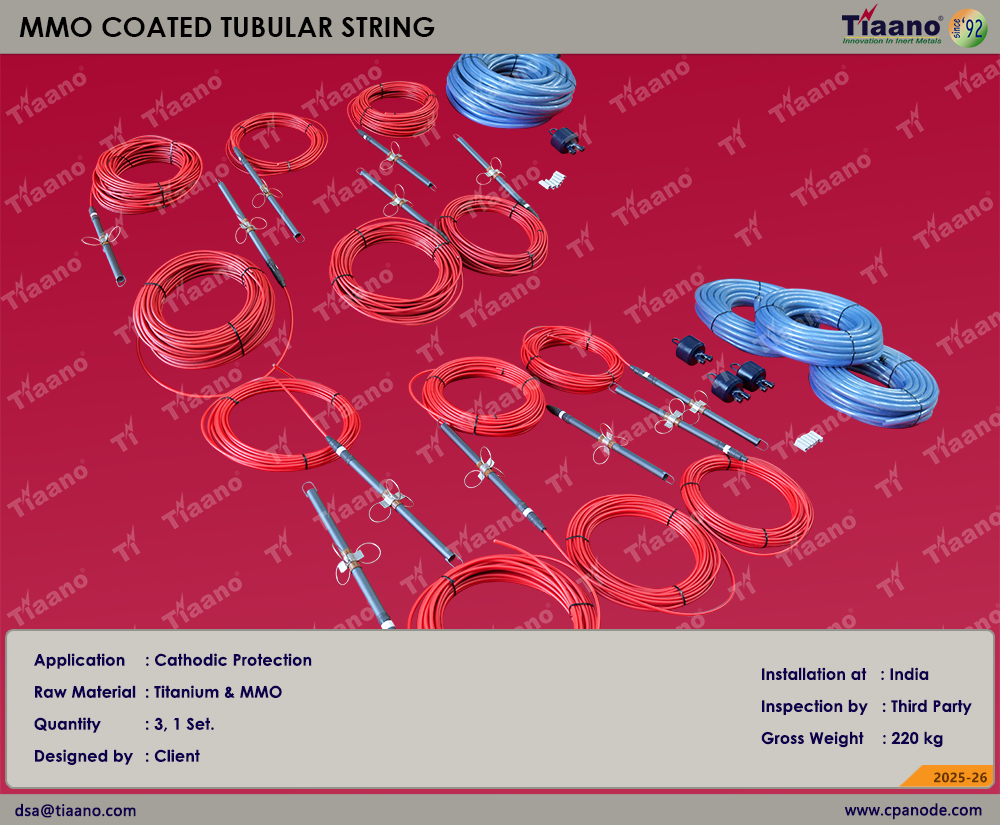

MMO Coated Titanium Tubular String Anode for Corrosion Free System

clock January 31, 2022 16:15 by author admin

Cathodic protection system is a technique used to control a corrosion of a metal surface by making it the cathodic side of an electrochemical cell. Cathodic protection is an old and effective system that prevents forming rust in metal and helps in corrosion resistant. Corrosion can be prevented by eliminating the oxygen or the positively charged hydrogen ions. Two methods are available for applying cathodic protection they are:

  • Impressed Current Cathodic Protection (ICCP)
  • Galvanic Cathodic Protection

We, Ti Anode Fabricators Pvt. Ltd., developed an extremely strong and electrically low resistance centre crimp connection, which ensures the lowest possible electrical resistance (less than 1.0 Milli Ohm) between the cables and anode tube. The Platinum group Mixed Metal Oxide coating is a crystalline electrically conductive coating that activates and enables a titanium substrate to function as an anode. Whether operating in fresh water, seawater, soil, or mud. MMO Coatings are extremely stable even in very low pH environments.

Ti’s MMO titanium tubular anodes are coated with mixed metal oxide that has an extremely low consumption rate measured in milligrams per year. Unlike other types of anodes the consumption rate of MMO anode is negligible with the dimensions of the anode element remaining virtually unchanged during the operational service life of the anode. As a result, the power required to impress current will remain the same.

mmotubularanode

Advantages:

  • Lightweight/Durable
  • High current output
  • Low cost
  • Dimensionally stable
  • High cost performance

Applications:

  • Salt, fresh and brackish water
  • Deep well Anodes
  • Marine applications
  • Tank bottoms
  • Underground pipelines

single string tube

Titanium tubular anodes are manufactured using titanium seamless tube and coated with platinum group precious metal mixed oxide coating. Titanium tubular string for pipelines are arranged in ground beds either distributed or in a deep vertical hole depending on several design and field condition factors including current distribution requirements.

For more details visit these links:

www.cpanode.com,www.tiaanostore.in,www.tiaano.com

Follow us on:





Manufacturing and Supply of Platinized Titanium Rod Anode for Cathodic Protection

clock January 12, 2022 09:14 by author admin

What is Cathodic Protection?

Cathodic protection system is to protect a wide range of metallic structures in various environments. Common applications or environment to protect steel, water or fuel pipelines and steel storage tanks such as huge oil tanks, chemical storage tanks, steel pier piles, ship and boat hulls, offshore oil platforms and onshore oil well casings and metal reinforcement bars in concrete buildings and structures. Corrosion can be defined as degradation of metal by forming electrical circuit where electrons get exchanged.

Ti Anode Fabricators Pvt. Ltd,Chennai, India is one of the best manufacturer in making MMO anodes or mixed metal oxide Cathodic Protection anodes and reference electrodes for a full range of cathodic protection application, by using Impressed Current Cathodic Protection (ICCP) process. The principle of cathodic protection is to connect an external anode to the metal and passing an electrical DC current so that all areas of the metal surface become cathodic and therefore do not corrode.

The external anode is to be an impressed current cathodic protection anode, where the current is impressed from an external DC power source. DC current is sent through an insulated wire to the anodes [which are either Dimensionally stable anodes / dimensionally stable anodes - MMO coated titanium anodes, Platinised titanium anodes, Platinized niobium anodes or their copper cored with platinum plated surface] buried in the soil like underground storage tank, pipeline, ship hulls etc.

Platinised Titanium Anode:

A platinized titanium anode is simply a titanium anode coated with platinum. These anodes act as an inert anodes and are non-consumable and long lasting. These anodes are insoluble in electrolyte where electrolysis is present. Platinized Titanium Rod are usually used in cantilever anode which is used for protecting pipeline internal, pump internal & condenser box internal for 30 years and more by applying DC current with transformer rectifier.

Platinised CP Rod

Applications:

  • Deep & conventional ground beds.
  • Jetties in fresh, brackish and salt-water electrolytes.
  • Water tanks.
  • Lock Gates.
  • Intake Screens.
  • Marine application.

Tiaano’s different types of anodes for Cathodic Protection:

Platinum plating and MMO coating have long life in all environments and services and also withstand in natural waters. Tiaano design and manufacture various types of anodes such as:

  • Strip/Disc Anode
  • Ribbon mesh anode
  • Tubular String Anode
  • Canister/Cantilever anodes
  • Piggy back anodes
  • Cables etc.

We also supply anodes for electroplating, electrolysis, water treatment deionization and various applications.

For more details visit these links:

www.cpanode.com,www.tiaanostore.in,www.tiaano.com

Follow us on:

Pinterest, Instagram, Facebook, Twitter

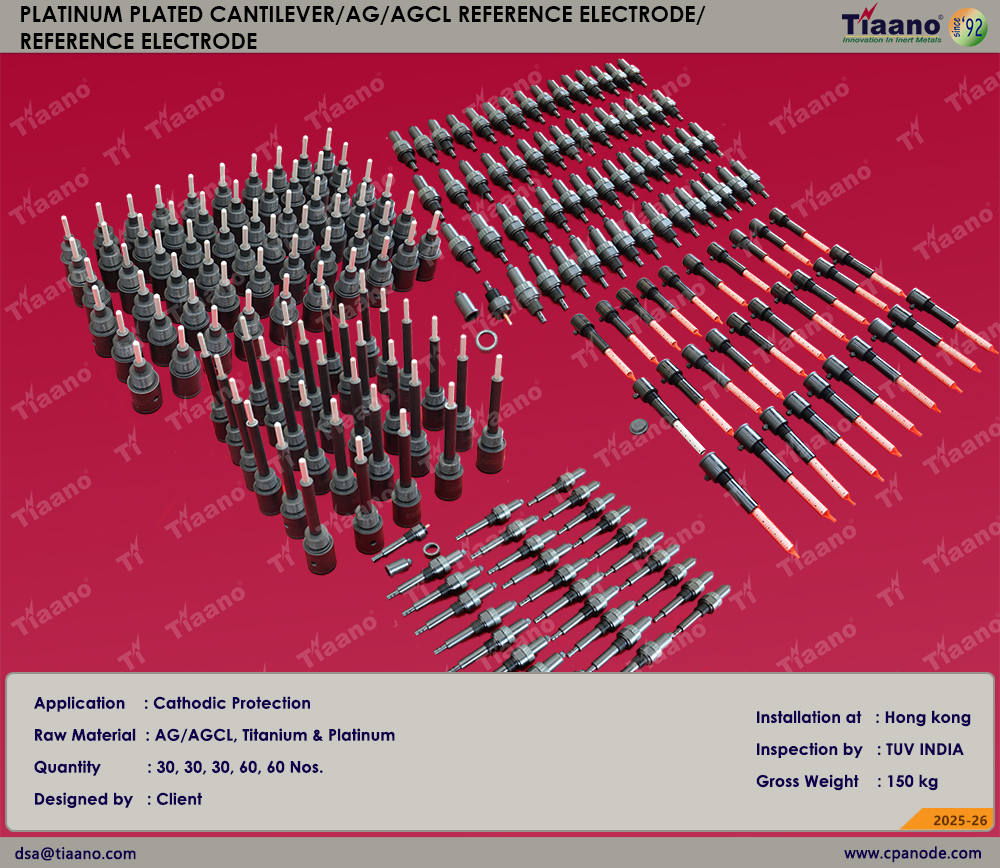

Platinum Plated Titanium Cantilever Anode for Cathodic Protection System

clock January 11, 2022 10:19 by author admin

Platinum is an excellent catalyst due to its high conductivity and low consumption rate. Platinum deposition made by electroplating method over a high corrosion resistance substrate. Platinum is a least reactive metals that has remarkable resistance to corrosion, even at high temperatures.Cathodic protection is a method for preventing corrosion on submerged and underground metallic structures. Cathodic protection is one of the most effective method for preventing corrosion on a metal surface.

Impressed Current Cathodic Protection is one of the best system to prevent corrosion by passing DC current through anodes and cathodes from one end to another end. Platinized cantilever anode is used for protecting pipeline internals, suction and condenser box internal for 30 years and more by applying DC current with transformer rectifier. We use platinum/ MMO plating/ coating to increase the conductivity.

Advantages:

  • Low consumption rate that conserves precious platinum.
  • Favorable dimensional stability.
  • Corrosion resistance ensures durability with easy maintainability.
  • Light weight, as well as favorable current distribution in electroplating.

Applications:

  • Heat exchangers.
  • Pumps.
  • Valves.
  • Pipes.
  • Marine application.

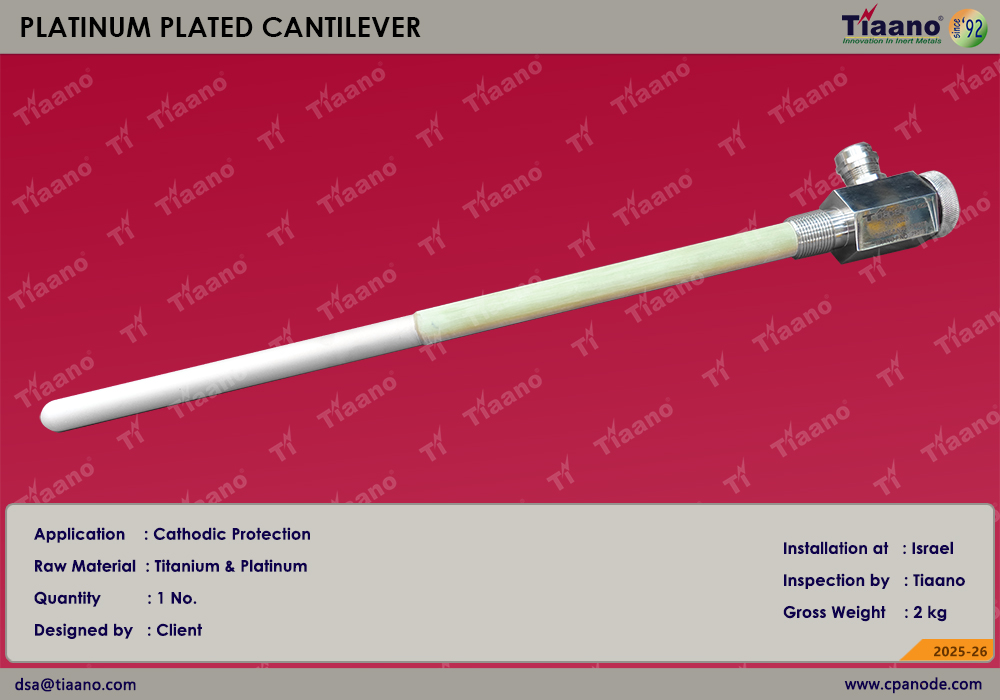

Cantileveranode

The product cantilever anode is made up of titanium and coated with platinum for protecting the anodes from corrosion and we have supplied our products over 63 countries.

To know more details about our products visit these links:

Pinterest, Instagram, Facebook, Twitter





Manufacturing and Supply of MMO Coated Piggy Back Anode for Cathodic Protection

clock January 7, 2022 12:11 by author admin

Cathodic protection is one of the best way to protect anodes and cathodes from corrosion. The principle of cathodic protection is to connect an external anode to the metal and passing an electrical DC current so that all areas of the metal surface become cathodic and therefore do not corrode.

Most commonly cathodic protection is used to prevent corrosion in underground pipelines, storage tanks, petroleum pipelines, offshore platforms, submarines, and other industrial uses. Piggy pack wire anodes connected with cable by the way of Crimping and sealing with mastic and heat shrink sleeve procedure. Tiaano has the in-house facility to crimp the anodes in LIDA and CPCC connections.

The piggy pack anodes are inserted in the jacket with coke fill to sustain the conductivity of the anodes in the place where we install them for cathodic protection.

Advantages:

  • Low wear rate.
  • High strength and less dense.
  • Corrosion-resistant
  • Long life.

MMOpiggyback anode

The product we supplied to the customer is made up of titanium wire and coated with Mixed Metal Oxide (MMO).

To know more details about our products visit these links:

1. https://twitter.com/cp_anodes

2. https://www.instagram.com/cp_anode/

3. https://www.pinterest.it/TiaanoCpAnode/_saved/

4. https://www.facebook.com/cathodicprotectionanodes



Manufacturing and Supply of MMO Coated Wire for Cathodic Protection

clock December 17, 2021 12:17 by author admin

Corrosion is naturally a destructive process that occurs when some metals are exposed to the environment and occurs when reaction between air, moisture and the metal gives rise. It commonly occurs in iron-based metals, steels etc. There are different methods to prevent and control corrosion. One of the best known method is Cathodic Protection.

Cathodic protection systems are mostly employed in various industries to prevent the corrosion in fuel pipelines, piers, underground pipelines, water storage tanks etc. The corrosion can be prevented using MMO coated anodes or platinum plated anodes which has good resistant from protecting the pipelines, ship hulls, tanks from corrosion.

Tiaano’s wire anodes are made up of titanium wire with a mixed metal oxide coating. The mixed metal oxide electrically-conductive and prevents corrosion. We supply wire anodes in different types of diameters and also we supply various cathodic protection anodes and platinum plated anodes over 63 countries.

Cathodic Protection

MMOWireAnode

To know more details about our products visit these links:

1.Twitter

2.Instagram

3.Pinterest

4.Facebook



MMO Coated Titanium Tubular String Anode for Cathodic protection

clock December 16, 2021 09:52 by author admin

Cathodic protection is the most common electrochemical technique used to prevent corrosion on pipelines, storage tanks, ship hulls, underground tanks etc. The process occurs when a DC current is passed through an anode and cathode so that the metal becomes cathodic and prevents corrosion.

Cathodic protection is one of the main technique to prevent corrosion. Cathodic protection is of two types they are Impressed Current Cathodic Protection (ICCP) and Galvanic Protection also known as DCCP. Cathodic protection systems protects a wide range of metallic structures in various environments. Titanium tubular anodes are manufactured using titanium seamless tube and coated with platinum group precious metal mixed oxide coating.

Titanium tubular string for pipelines are arranged in ground beds either distributed or in a deep vertical hole depending on several design and field condition factors including current distribution requirements.

CPString Anode
