Platinised Titanium Rod supply to Korea (South) for Cathodic Protection Application

clock November 13, 2023 15:07 by author admin

Platinised Titanium Rod supply to Korea (South) for Cathodic Protection Application

Platinized Titanium anodes are widely used for various applications including Impressed Current Cathodic Protection (ICCP) such as hard chrome plating, metal electroplating, electronics, semiconductor industry, chemical process engineering, electroplating, electro dialysis, electroforming (Conforming anodes), electrochemical sensing, electro winning and metal refining, electrolytic regeneration of chromic acid, sodium hypochlorite production, Electro synthesis of organic and inorganic chemicals Etc.,

This platinized titanium anode are highly competent to survive the atmosphere whereas high chemical and environmental corrosion risk exist such as.

v  Deep & conventional ground beds.

v  Jetties in fresh, brackish and salt-water electrolytes.

v  Water tanks.

v  Lock Gates.

v  Intake Screens.

v  Marine application.

Surface resistance of Platinized titanium anodes are very less by nature while compare conventional electrodes, so power efficiency of an entire process become superior.

Platinum layer on titanium substrate become stable during an entire design life, so this anodes are also known Dimensionally Stable Anode.

Platinized titanium anodes are manufactured with a titanium base structure, in the form of either plate, rod, wire, mesh or tube (or any shape as per request). Catalyst thick on surface: Platinum (in micron thick) 2.5 to 7.5; MMO (in micron thick) 8.0 to 10.0.

Advantages

v  Excellent corrosion resistance and catalytic activity

v  Low hydrogen evolution potential, can be utilized as both an anode and cathode

v  Great current efficiency

v  Reversible polarity

v  Excellent coating adhesion

Current Output: Current output is dependent on…

A] Coating catalyst

B] Wire size

C] Coating thickness

D] Substrate

E] Application

F] Design life

G] Temperature.



Anodes are available with the current output of 1.7 A to 13 A/each. Or the operational CD is over 50A / ft2. Anode Size: Available in six standard sizes of rod anodes as follows, 3.0 mm dia; 6.0 mm dia; 10.0 mm dia; 12.0 mm dia; 20.0 mm dia; 25.0 mm dia. Other sizes are available on request.













MMO COATED TUBULAR STRING FOR CATHODIC PROTECTION

clock July 6, 2023 09:50 by author admin

We, Ti Anode Fabricators Pvt. Ltd., developed an extremely strong and electrically low resistance centre crimp connection, which ensures the lowest possible electrical resistance (less than 1.0 Milli Ohm) between the cables and anode tube. The Platinum group Mixed Metal Oxide coating is a crystalline electrically conductive coating that activates and enables a titanium substrate to function as an anode. Whether operating in fresh water, seawater, soil, or mud. MMO Coatings are extremely stable even in very low pH environments.

MMO titanium tubular anodes are coated with mixed metal oxide that has an extremely low consumption rate measured in milligrams per year. Unlike other types of anodes the consumption rate of MMO anode is negligible with the dimensions of the anode element remaining virtually unchanged during the operational service life of the anode. As a result, the power required to impress current will remain the same.

Cathodic protection system is a technique used to control a corrosion of a metal surface by making it the cathodic side of an electrochemical cell. Cathodic protection is an old and effective system that prevents forming rust in metal and helps in corrosion resistant. Corrosion  can be prevented by eliminating the oxygen or the positively charged hydrogen ions.

FOR ENQUIRES PLEASE DROP YOUR EMAIL AT dsa@tiaano.com/dsasupport@tiaano.com



MMO_COATED_TUBULAR_STRING



MMO COATED TUBULAR STRING FOR CATHODIC PROTECTION

clock May 31, 2023 10:15 by author admin

We, Ti Anode Fabricators Pvt. Ltd., developed an extremely strong and electrically low resistance centre crimp connection, which ensures the lowest possible electrical resistance (less than 1.0 Milli Ohm) between the cables and anode tube. The Platinum group Mixed Metal Oxide coating is a crystalline electrically conductive coating that activates and enables a titanium substrate to function as an anode. Whether operating in fresh water, seawater, soil, or mud. MMO Coatings are extremely stable even in very low pH environments.

MMO titanium tubular anodes are coated with mixed metal oxide that has an extremely low consumption rate measured in milligrams per year. Unlike other types of anodes the consumption rate of MMO anode is negligible with the dimensions of the anode element remaining virtually unchanged during the operational service life of the anode. As a result, the power required to impress current will remain the same.

Cathodic protection system is a technique used to control a corrosion of a metal surface by making it the cathodic side of an electrochemical cell. Cathodic protection is an old and effective system that prevents forming rust in metal and helps in corrosion resistant. Corrosion  can be prevented by eliminating the oxygen or the positively charged hydrogen ions.



FOR ENQUIRES PLEASE DROP YOUR EMAIL AT dsa@tiaano.com/dsasupport@tiaano.com





CATHODIC PRODUCTION ANODES

clock August 22, 2022 12:54 by author admin

Platinum titanium is a platinum metal oxide or platinum layer-coated on a titanium substrate. It is non-consumption, durable, and insoluble in the electrolyte.  We can use platinum titanium anode for cathodic protection and electroplating.

Zinc Reference electrodes are generally implemented for the purpose of monitoring the anode in cathodic protection of buried or immersed metallic structures. It is made of high-purity Zinc alloy, ensuring accuracy and stability of potential measurements.

The electrode frame is made of stainless steel, coated carbon steel or Rubber. The electrode can be designed to fix in the structure. By means of specifically designed supports.

Ag/Agcl Reference Electrode is the silver/silver chloride reference electrode is composed of a silver wire, sometimes coated with a layer of solid silver chloride, immersed in a solution that is saturated with patassium chloride and silver chloride.

The Reference Electrode implements a major usage in the cathodic protection System. Reference Electrode are in different shapes like disc, rod and strip with different dimension, which is also installed in the Heat exchanger to monitor the current supply of Cantilever anodes.



  • Flexibility to meet various user needs
  • Produce complex shape of the anode
  • Energy-saving
  • Lightweight (especially the mesh grid anode)
  • Longer working life under higher current density
  • Firm titanium structure, less deformation
  • Second platinized allowed;
  • Uniform deposit, final products with high quality.

 For Enquiries please drop your email at dsa@tiaano.com|dsasupport@tiaano.com





CATHODIC_PRODUCTION_ANODES

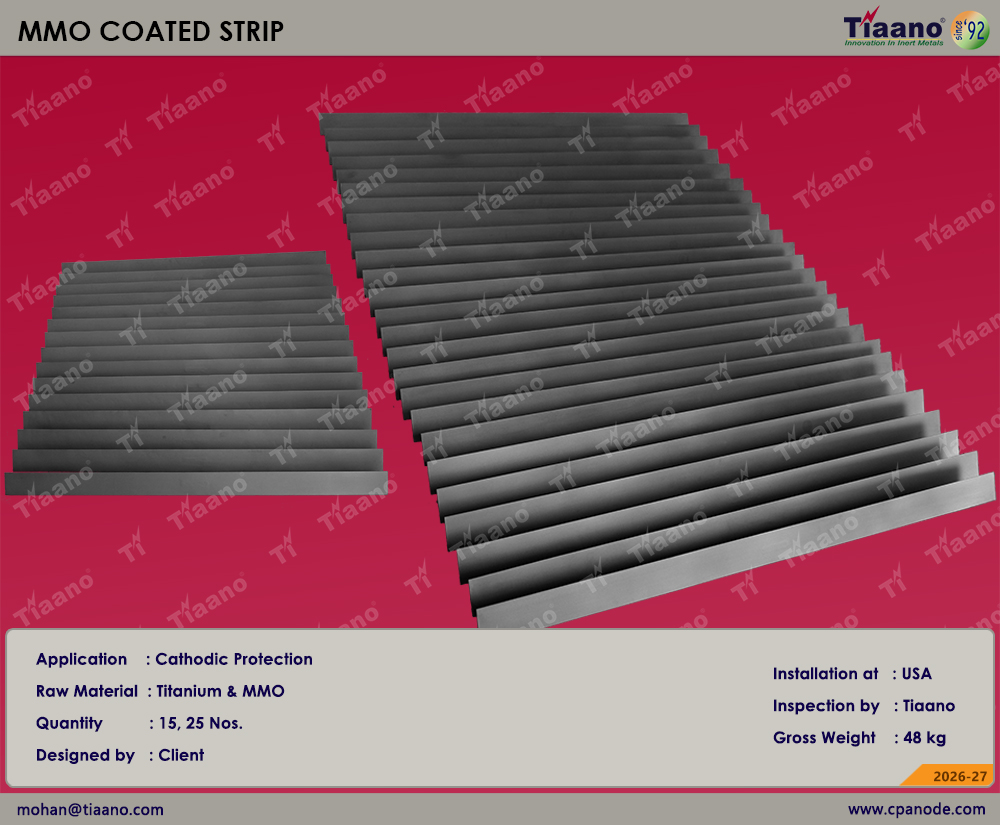

MMO Coated Titanium Strip Anode for Cathodic Protection

clock August 2, 2022 17:46 by author admin

Strip anode is mostly utilized for the erosion insurance of seawater structure, Pilings, Piers, Jetties and drifting vessels and so on. Normally these anodes are utilized in the security of Seawater Application. Strip anode is a vital part for Cathodic Protection frameworks in seawater structures. It is made out of a valuable metal blended oxide impetus in the titanium plates by warm cycle.

Titanium strip anodes are fabricated utilizing titanium ASTM B 265 Gr. 1 or 2, Coated with Platinum bunch valuable metal blended oxide covering. MMO covering comprises of Ir and Ta and it is appropriate for use in all cathodic assurance applications. Since blended metal oxide anodes have a very low utilization rate, the titanium substrate stays consistent over the plan lifetime of the anode.

The leading anti-corrosion & uniform current distribution characters, it have great physical and mechanical properties of titanium. MMO covered anodes are emphatically suggested for Impressed Current Cathodic Protection (ICCP) application. We likewise fabricated and provided FRP Insulated Strip anode for different clients.

Impressed Current Cathodic Protection systems are the ultimate solution for all corrosion problems to protect the metallic structure for long time and are recognized as a superior alternative to sacrificial anode systems which require frequent replacement. Impressed current cathodic protection systems are preferred by ship owners because they reduce fuel cost and maintenance.

MMO Coated strip is used for concrete protection like jetty pile, underground pipes, pillars etc. Tiaano supplying FRP insulated strips with catalyst of MMO and Platinised. Tubular string anodes are used to protect the underground pipe lines from corrosion.

FOR ENQUIRES PLEASE DROP YOUR EMAIL AT dsa@tiaano.com/dsasupport@tiaano.com

MMO_COATED_STRIP



PLATINISED COPPER CORED TITANIUM ROD

clock July 27, 2022 17:29 by author admin



PLATINISED COPPER CORED TITANIUM ROD

Platinized titanium anodes are extensively used in electrolytic processes. They have successfully replaced lead anodes in electroplating applications due to their lower consumption, dimensional accuracy, ability to form precise deposit thicknesses on desired geometric shapes, predictable plating chemistry and ease of maintenance. These anodes can be designed and formed with various geometries based upon the parts to be electroplated.

Platinum on titanium anodes are highly preferred anodes for electrodeposition of copper, chromium, platinum, nickel, palladium and gold.

Platinized titanium anode by adopting thermal decomposition process to get a dense wear-resistant layer of platinum coating. The anode surface is modified to improve adhesion of platinum and to significantly improve uniformity of coating thickness, also reduce the coating porosity imparting greater acid resistance to the anode. This platinum coated titanium anode can be fabricated into bar, rod, sheet, mesh and other customized shape to meet your special needs.

Because of its high conductivity and low consumption rate, Platinum is an excellent anode material. Due to its high cost, Platinum is made practical for use by electroplating a thin layer over a high corrosion resistance substrate. Since Titanium, Niobium and Tantalum substrates have the ability to form an insulating oxide film under anodic conditions, they are commonly used as anode in ICCP (impressed current cathodic protection anode). Among them, Titanium is less expensive; however, it has a much lower breakdown potential than Niobium or Tantalum. The titanium oxide breaks down at anodic potentials in the 12 V range.

Advantages of platinized titanium anodes

Low consumption rate and high current density

Voltages in excess of 10 Volts will result in severe pitting of the titanium core causing premature failure



platinised_copper_cored_titanium_rod

For Enquiries please drop your email at dsa@tiaano.com|dsasupport@tiaano.com

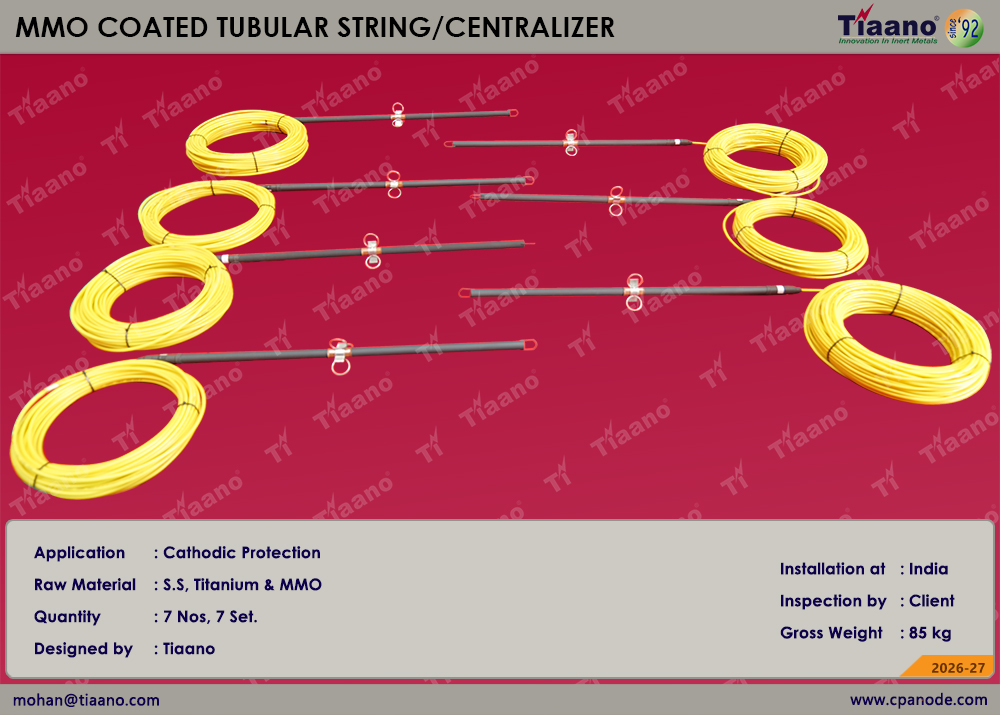

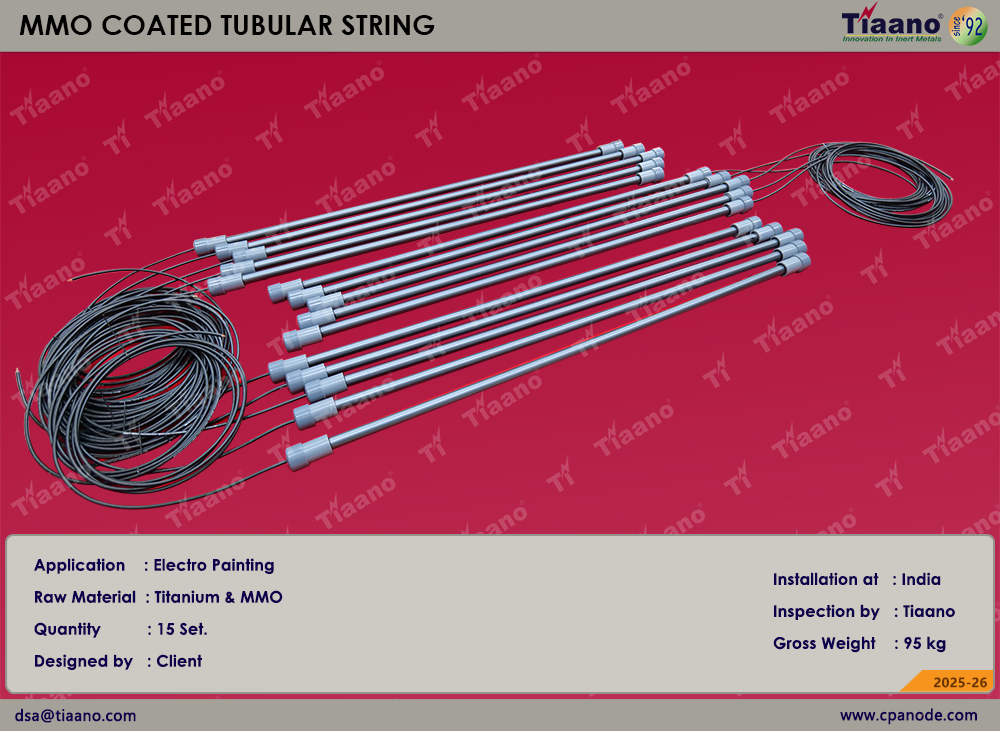

MMO Coated Tubular String for Cathodic Protection Anode

clock July 21, 2022 18:09 by author admin



 MMO Coated Tubular String for Cathodic Protection

We Tiaano do fabrication & supply of  MMO Titanium tubular anodes by using titanium seamless tube and coated with platinum group precious metal mixed oxide coating. Titanium tubular string for pipelines are arranged in ground beds either distributed or in a deep vertical hole depending on several design and field condition factors including current distribution requirements

Mixed Metal Oxide Coated Titanium anode design for the demands of deep anode beds, shallow beds and the earth’s natural waters. MMO Tubular anodes are dimensionally stable anodes which remain constant throughout all of the anode life, thus providing a constant performance with a low resistivity MMO Titanium tubular anodes are a titanium tube base with a mixed metal oxide conductive coating and itself an excellent electronic conductor.

The design life of the anode varies with operating current in a variety of applications from seawater to soil. Tubular Anodes are available in a number of diameters, lengths, current carrying capacities and life ratings.

MMO tubular anode can be in single or in string, it is generally adopting titanium tubular as substrates and coated with a mixed metal oxide catalyst.

Mixed metal oxide based electrocatalytic anodes are a different type of anodes when compared to conventional anodes. These anodes are dimensionally stable, long life anodes that are not consumed during the process of generating cathodic protection current..

Benefits of MMO Coated Tubular String:

·         Lightweight/Durable

·         High current output

·         Low cost

·         Dimensionally stable

·         High cost performance

The specification of the below displayed MMO Coated Titanium Tubular String Anode

Material

Titanium

Coating

MMO

Country of origin

India

Thickness

0.9 mm

OD

25.4 mm

Length

500 mm

Cathodic protection is a technique used to control the corrosion of a metal surface by making it the cathode of an electrochemical cell. A simple method of protection connects the metal to be protected to a more easily corroded "sacrificial metal" to act as the anode.

MMO_Titanium_Tubular_String



For Enquiries please drop your email at dsa@tiaano.com|dsasupport@tiaano.com









MMO COATED TITANIUM/NIOBIUM RUBBERIZED DISC ANODE AND ZINC REFERENCE ELECTRODE FOR CATHODIC PRODUCTION USED TO PROTECT THE SHIP HULL FROM SEA WATER CORROSION

clock May 13, 2021 11:53 by author admin

MMO (Mixed Metal Oxide) coated rubberized disc anodes are used to protect the ship or hull from sea water corrosion. Normally Titanium having noncorrosive, but it contains nonconductive material. MMO coated will give the conductivity in titanium as per the application and amperage. Zinc reference electrode will be placed in particular distance as per the cathodic protection system to monitor the conductivity of the MMO coating disc.

Sea water is very corrosive environment because the salt present in it makes very good conductor of electricity. It creates a lot of free irons which accelerate oxidation of iron (mid steel) which made of oxidation.

When using MMO coated rubberized disc anode to protect the ship hull from sea water corrosion, external current are applied to convert high-potential anodic sites on a ship hulls to low-potential cathodic sites. This ensures the ship hull surface is protected from corrosion.

We can install MMO coated disc in the hull by passing DC current by a rectifier which will protect the ships life longer nearly 20 to 25 years depends upon the usage of the ship which afloat often.

MMO coated rubberized disc size well be customized depends upon the design of the CP system.

Advantages:

  • Ø  Durability compared to galvanic anode.
  • Ø  Demonstrate reliability.
  • Ø  Optimum documented corrosion production at minimum overall cost.
  • Ø  Anodes are lite, sturdy and compact for easy shipping, storage and installation.

Tianno manufacturing platinum as well as MMO coated disc anodes. Below product recently supplied to Singapore.





MMO COATED TITANIUM/NIOBIUM DISC ANODES FOR CATHODIC PROTECTION USED TO PROTECT SHIP OR BOAT HULL FROM SEA WATER CORROSION – TIANNO MANUFACTURING AND SUPPLYING OF MMO COATED/ PLATINIZED TITANIUM/NIOBIUM ANODES

clock May 12, 2021 16:00 by author admin

Sea water is very corrosive environment because the salt present in it makes very good conductor of electricity. It creates a lot of free irons which accelerate oxidation of iron (mild steed) which made of oxidation.

MMO (Mixed Metal Oxide) coating disc anodes are used to protect the ship or boat hull from seawater corrosion. Normally titanium having non-corrosion nature, but non-conductive material. MMO coated disc used in ship hull protection to avoid the high corrosion in seawater.

MMO (Mixed Metal Oxide) coated disc anodes are used to protect the cathode from erosion and corrosion with DC power supply called as impressed current cathodic protection (ICCP).

MMO (Mixed Metal Oxide) coated disc size well be customized depends upon the design of the CP system.

Advantages:

  • Ø  Increased life of rudders.
  • Ø  Increased dry-dock interval.
  • Ø  Automatic control equipment ensures reliable, simple operation.
  • Ø  Durability compared to galvanic anodes.

Tianno manufacturing platinum as well as MMO coated disc. Below the product recently supplied to Netherland.





MMO Coated rod & MMO Coated tube – Spares for Cantilever anode and Tubular anode for cathodic protection:

clock January 6, 2020 13:46 by author admin

MMO Coated rod & MMO Coated tube – Spares for Cantilever anode and Tubular anode for cathodic protection:



We design, manufacturing and supply of MMO & Platinum plated Titanium and Niobium anodes for Impressed Current Cathodic Protection (ICCP).  According to the customer’s requirement we manufacture the anodes from copper cored titanium and copper cored niobium too.   Our anodes are gone through the accreditation test by M/s. TWT, London as per NACE standard TMO 294-200.  Our MMO coated / Platinized anodes are specified as…





Ø  Made from seamless Titanium tubes:  Single or multi string anodes, Cantilever and probe anodes, Civil probe or discrete tube anodes, Liner loop tube anodes, Tube anodes.

Ø  Made from titanium / niobium or their copper cored rods: Cantilever anodes, Heater probe anodes, Canister anodes, Suspended rod anodes, Rod anodes.

Ø  Made from titanium and niobium wires: Canister anodes, Expanded spring anodes, Anode flex, Piggy back anodes, Linear loop anodes, Wire anodes.

Ø  Made from Titanium and Niobium sheets:  Strip canister anodes, Strip anodes, Elliptical anodes, Disc anodes, Solid ribbon anodes, Pyramid anodes, Conductor bar.

Ø  Made from Titanium expanded metal mesh: Mesh canister anodes, Ribbon mesh anodes, discrete anodes, Star guard anodes, Anode mesh.

Ø   Reference electrodes from MMO coated titanium rods and zinc cast rods.





Tiaano supplying all cathodic protection anodes as well as spares of CP anodes such as mmo coated & platinized titanium rod, tube, mesh, plate etc., in larger quantity to our regular customers all over the world.



Our recent supply to our Indonesian customer:
