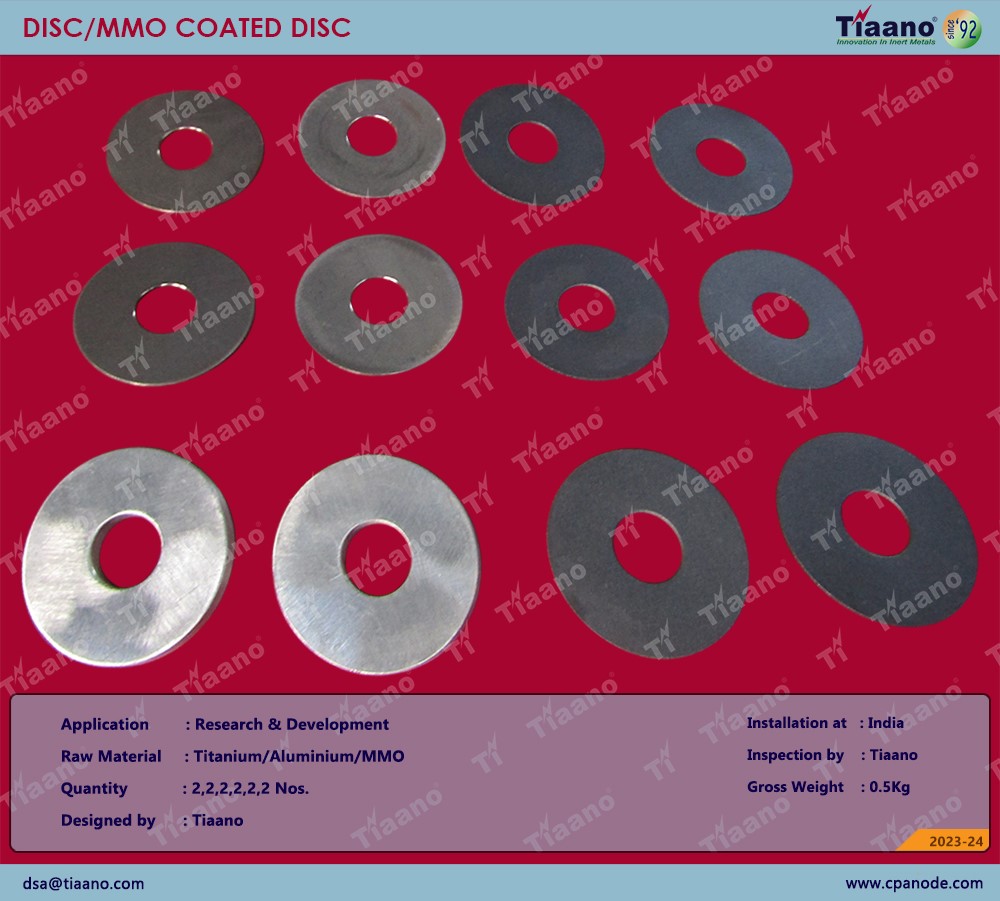

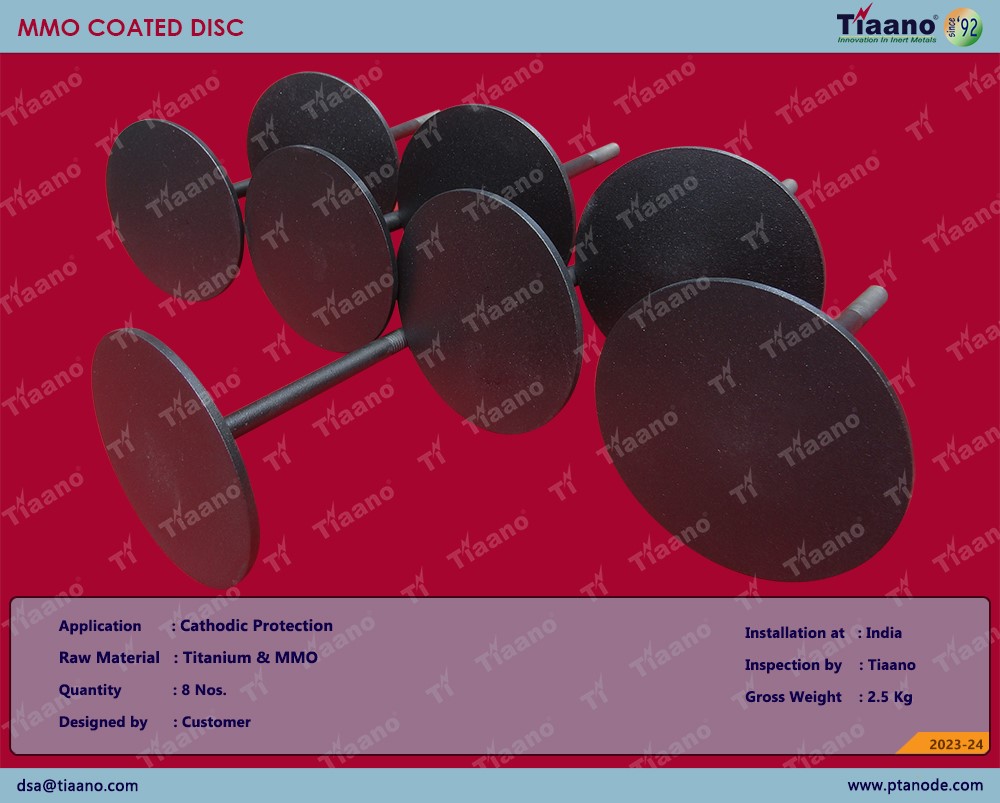

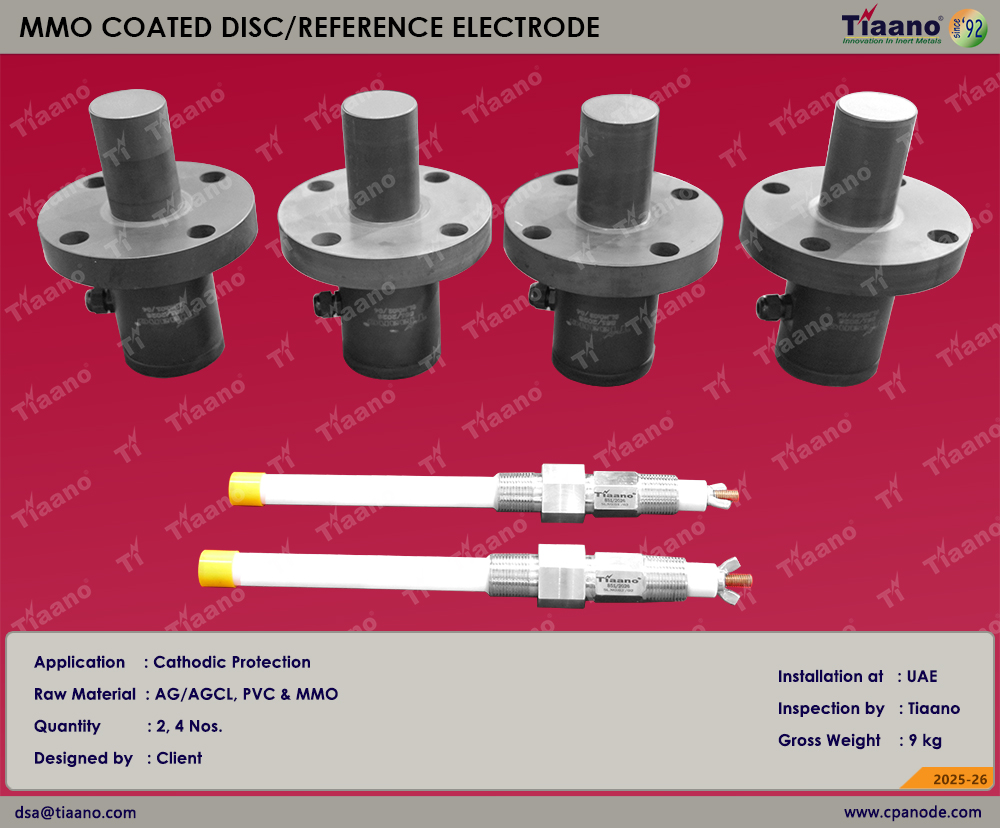

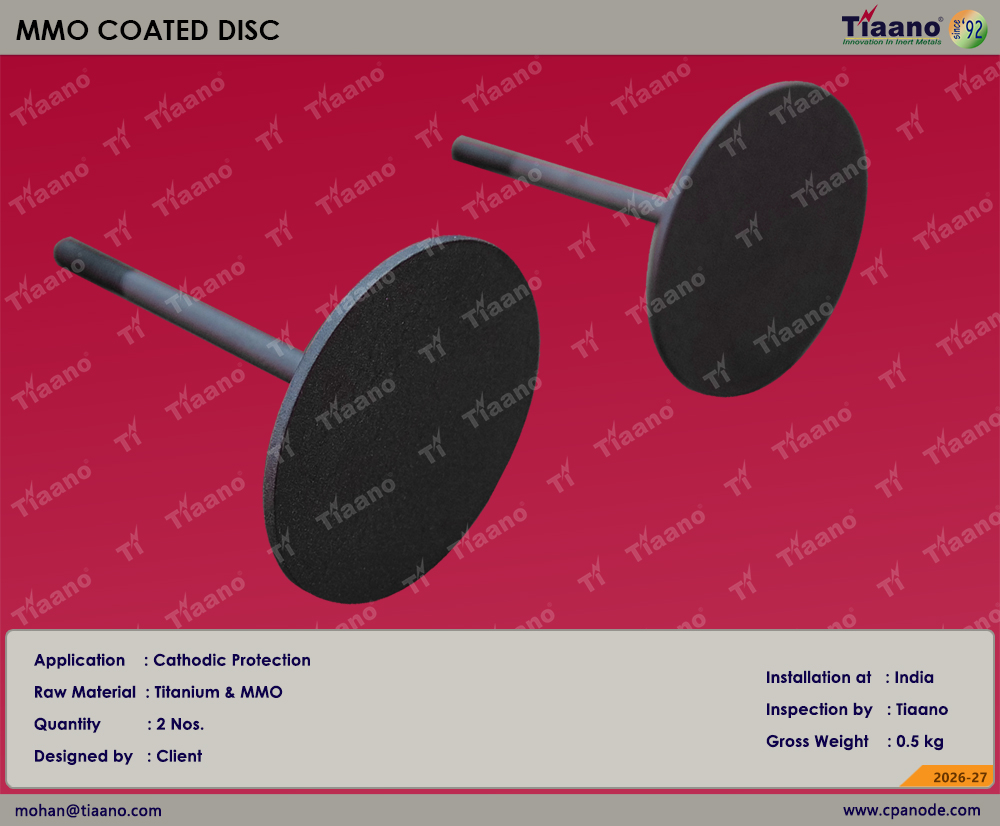

Why Disc-Shaped MMO Anodes Deserve Consideration in Specialized Cathodic Protection Designs

In specialized cathodic protection projects, anode geometry often determines long-term system reliability. While tubular and ribbon anodes remain common, disc-shaped MMO anodes bring distinct advantages that engineers and EPC contractors should evaluate for targeted applications.

Compact Geometry for Constrained Spaces

The MMO Coated Disc configuration provides a low-profile form that fits restricted areas where conventional anodes cannot be installed. Its circular surface allows secure mounting with minimal intrusion into the protected structure. This makes the MMO Coated Disc especially useful in specialized cathodic protection designs involving tanks, vessels, concrete elements, or equipment with limited access points.

Uniform Current Distribution

The disc shape promotes more even current spread across a defined area. This reduces the risk of localized over-protection or under-protection and helps maintain protective potentials within the desired range. In specialized cathodic protection systems, such controlled distribution supports precise design calculations and improves overall system performance.

Titanium Substrate and MMO Coating Performance

Tiaano manufactures these MMO Coated Disc anodes from high-grade titanium substrates coated with mixed metal oxide. The titanium base delivers mechanical strength and corrosion resistance, while the MMO layer ensures low consumption rates and stable electrochemical behavior over long service life. Because Tiaano controls both titanium fabrication and MMO coating processes in India, each unit meets consistent quality standards suited to project-specific current requirements.

Practical Advantages for Project Execution

Specialized cathodic protection work often involves variable electrolytes or tight installation envelopes. Multiple MMO Coated Disc units can be positioned to create optimized current patterns without the bulk of longer anode forms. The robust construction also resists mechanical damage during handling, supporting reliable performance with minimal maintenance.

When evaluating options for specialized cathodic protection, the combination of geometric efficiency, material integrity, and manufacturing control offered by disc-shaped MMO anodes warrants serious consideration. Tiaano’s expertise in titanium and MMO technology ensures each MMO Coated Disc meets the technical demands of modern projects.

For detailed specifications, custom configurations, or technical support on MMO Coated Disc anodes, visit www.cpanode.com or contact mohan@tiaano.com.

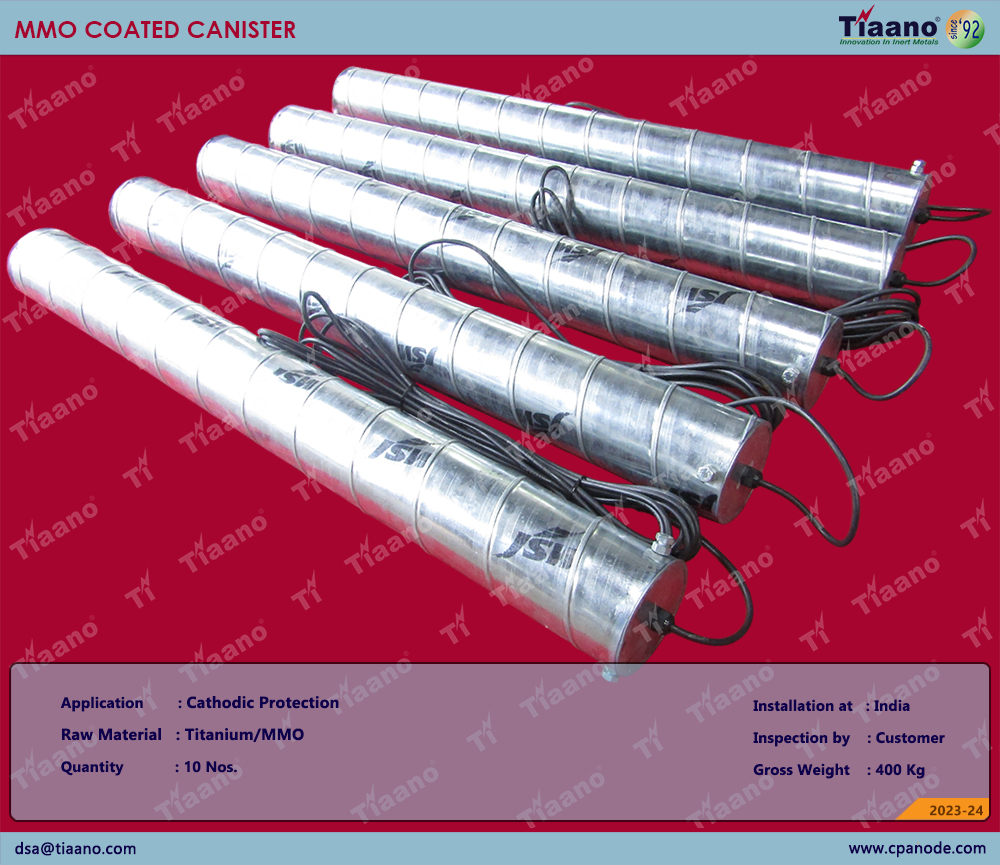

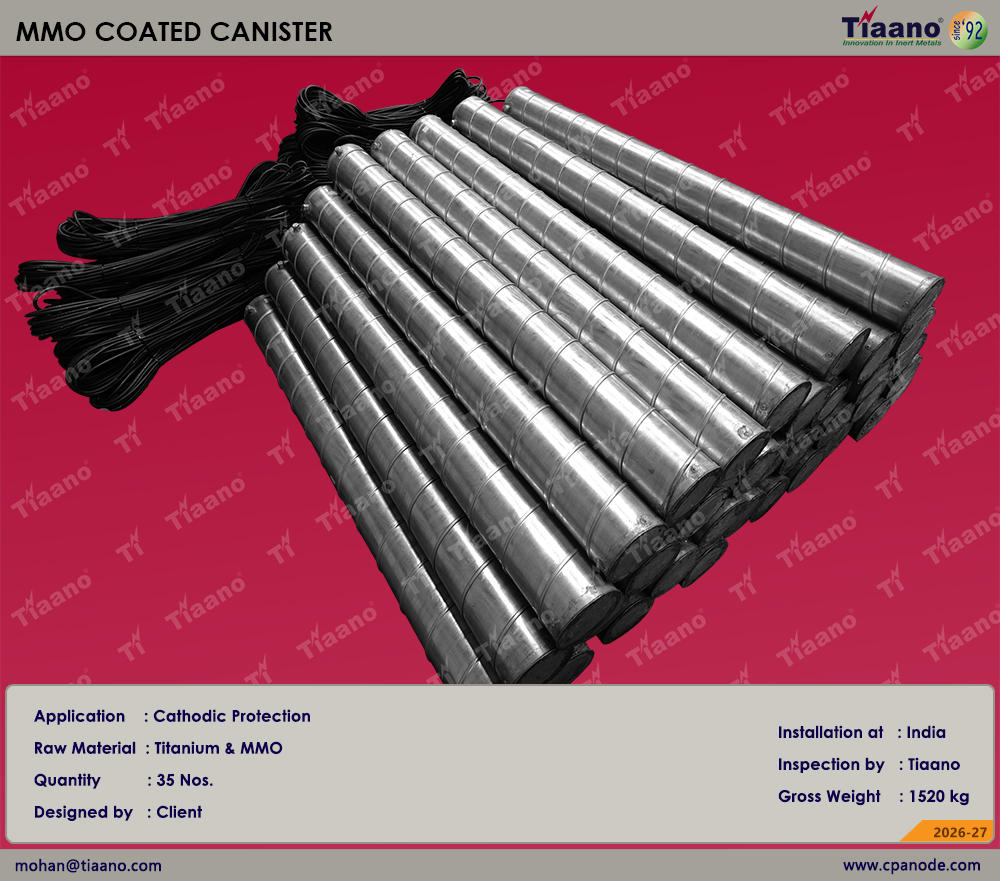

Inside an MMO Coated Canister Anode: Components, Assembly and Cathodic Protection Design

Preventing metallic corrosion in aggressive soil environments requires precise impressed current cathodic protection (ICCP) engineering. Subsurface structures such as underground pipelines, storage tank bottoms, and well casings face persistent electrochemical degradation. Among the most efficient tools to combat this challenge is the MMO Coated Canister anode system.

Understanding what goes inside this specialized packaging reveals why it remains a preferred choice for corrosion engineers and EPC contractors worldwide.

       MMO Titanium Anode Core

                 │

                 ▼

  [── Centralizer Spacers ──]  <-- Prevents internal short circuits

                 │

                 ▼

  [── Petroleum Coke Backfill ──] <-- Lower contact resistance & uniform current distribution

                 │

                 ▼

     Galvanized Steel Canister   <-- Protective shell (dissolves harmlessly underground)

Key Components of an MMO Canister Anode

An MMO Coated Canister is an integrated anode assembly engineered for immediate deep-well or shallow groundbed installation. It consists of three core elements:

ü  MMO Titanium Core: The heart of the assembly is a premium titanium element activated with a Mixed Metal Oxide (MMO) electrocatalytic coating. Titanium provides superior mechanical strength and acid resistance, while the noble metal oxide coating ensures ultra-low consumption rates and high current output.

ü  Calcined Petroleum Coke Backfill: Surrounding the internal titanium element is high-density, low-resistivity calcined petroleum coke. This conductive backfill expands the effective surface area of the anode, dramatically reducing overall groundbed resistance and preventing localized gas blockage.

ü  Galvanized Sheet Steel Canister: The outer container holds the backfill tightly packed around the central element, protecting the assembly during shipping, handling, and downhole installation. Once buried, the temporary steel casing slowly corrodes, leaving a perfectly packed, low-resistance carbon matrix around the active anode.

Assembly and Manufacturing Precision

The reliability of a canister assembly depends heavily on manufacturing integrity. At Tiaano, our specialized titanium fabrication facility ensures that every internal connection—especially the primary cable-to-anode connection—is hermetically sealed against moisture ingress. Centralizers maintain precise spacing inside the canister, eliminating short circuits and ensuring uniform current distribution across the entire backfill column.

Role in Impressed Current Cathodic Protection Design

Integrating MMO Coated Canister units into your Cathodic Protection scheme offers distinct performance advantages:

1.   Lower Installation Risk: Pre-packaged backfill eliminates field mixing errors and ensures uniform density around the anode.

2.   Extended Operating Life: The low consumption rate of noble MMO coatings allows for continuous operation over decades in harsh soils.

3.   Optimized Power Consumption: Low electrical resistance minimizes the required power output from ICCP rectifiers.

Tiaano: Your Trusted Partner in Titanium Anodes

As a specialized manufacturer in India with deep expertise in noble metal electrochemistry and titanium fabrication, Tiaano designs and delivers high-performance Cathodic Protection solutions tailored to complex industrial challenges.

For technical inquiries or custom Cathodic Protection specifications, visit www.cpanode.com or reach out directly to our engineering team at mohan@tiaano.com

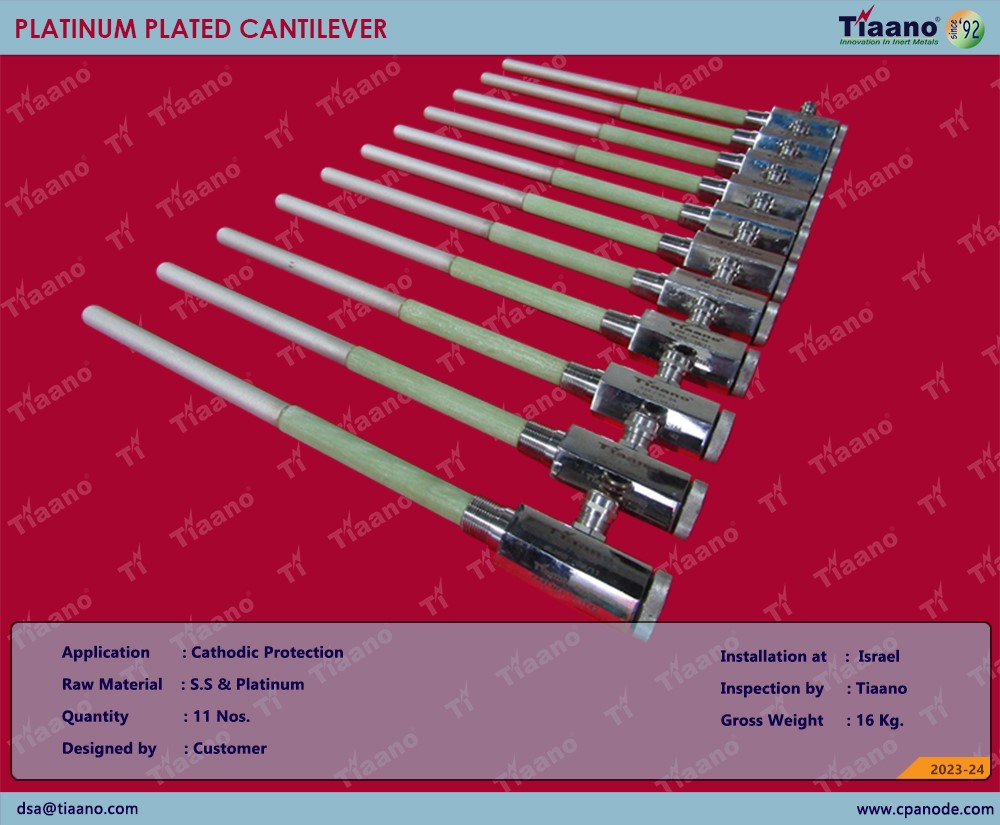

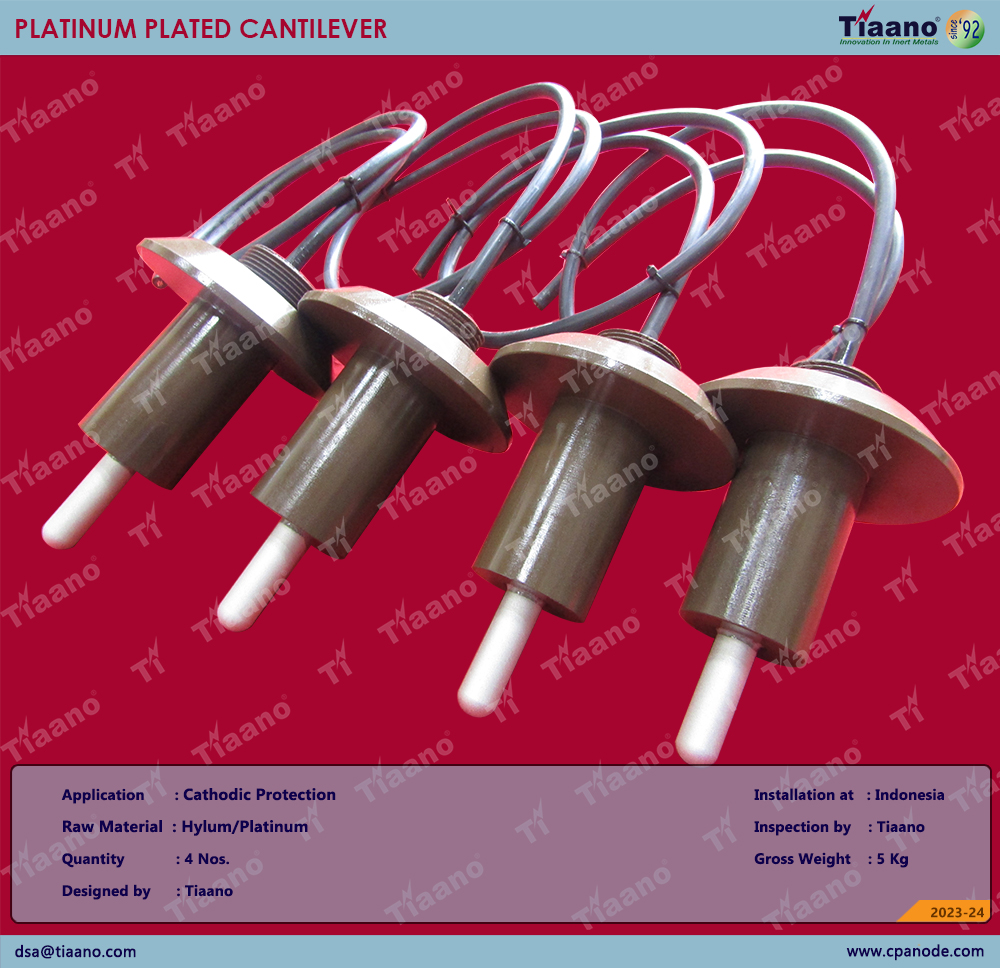

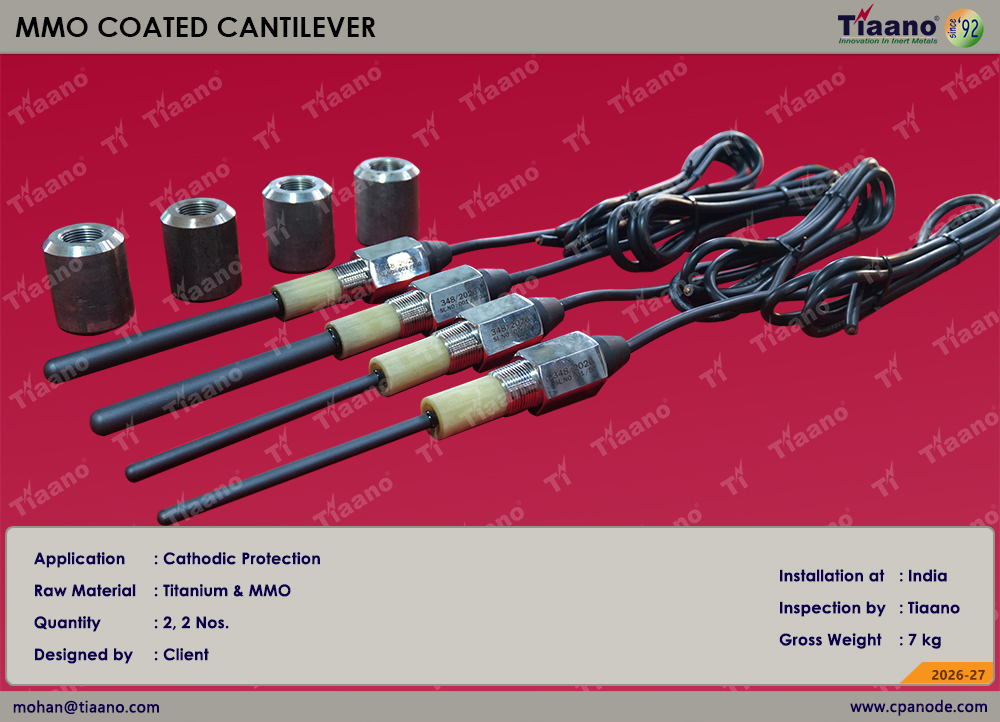

Anode Positioning and Structural Design: Understanding MMO Coated Cantilever Systems

In engineered corrosion control, anode positioning and structural arrangement play an important role in achieving effective protection. When conventional anode configurations are unsuitable for specific installation requirements, MMO Coated Cantilever systems offer an alternative design approach for specialized Cathodic Protection applications.

The Importance of Cantilever Anode Design

A cantilever arrangement allows an anode to be positioned using a supporting structural configuration, helping accommodate particular mounting and installation requirements. In Cathodic Protection systems, appropriate anode positioning is essential for achieving the intended current distribution and maintaining suitable electrical connections.

The MMO Coated Cantilever combines a titanium substrate with a Mixed Metal Oxide (MMO) coating. Titanium provides a corrosion-resistant structural foundation, while the MMO coating serves as the electrochemically active surface. This combination makes the product suitable for specifically engineered impressed-current Cathodic Protection systems.

Structural Design and Material Selection

The structural integrity of a cantilever anode depends on suitable material selection, fabrication accuracy and connection design. Titanium offers a favourable combination of corrosion resistance and mechanical properties for electrochemical applications. The MMO coating provides the functional anode surface, making coating quality and substrate preparation important manufacturing considerations.

Electrical connections and supporting components also require careful attention. Proper cable integration, secure connections and appropriate mounting arrangements contribute to installation reliability. Selecting the right MMO Coated Cantilever involves evaluating the operating environment, installation geometry, electrical requirements and intended protection objectives.

Manufacturing Expertise for Reliable Performance

Manufacturing consistency is essential when producing specialized anodes for industrial Cathodic Protection systems. From titanium component preparation and precision fabrication to MMO coating application and final inspection, every production stage contributes to the finished product's quality.

Tiaano, an Indian manufacturer of titanium and MMO-based electrochemical products, brings its manufacturing expertise to the development of MMO Coated Cantilever solutions. Its focus on material selection, fabrication processes and product quality supports the requirements of customized industrial anode applications.

Supporting Engineered Cathodic Protection Solutions

Every Cathodic Protection installation presents different structural, electrical and environmental considerations. Choosing a suitable anode configuration requires coordination between system design, installation conditions and material performance. A properly engineered MMO Coated Cantilever can help address specialized mounting and positioning requirements within an appropriately designed protection system.

Looking for a reliable MMO Coated Cantilever manufacturer in India? Partner with Tiaano for titanium and MMO anode solutions tailored to your industrial Cathodic Protection requirements. Contact our technical team to discuss your project and product specifications.

Website:www.cpanode.com Email: mohan@tiaano.com

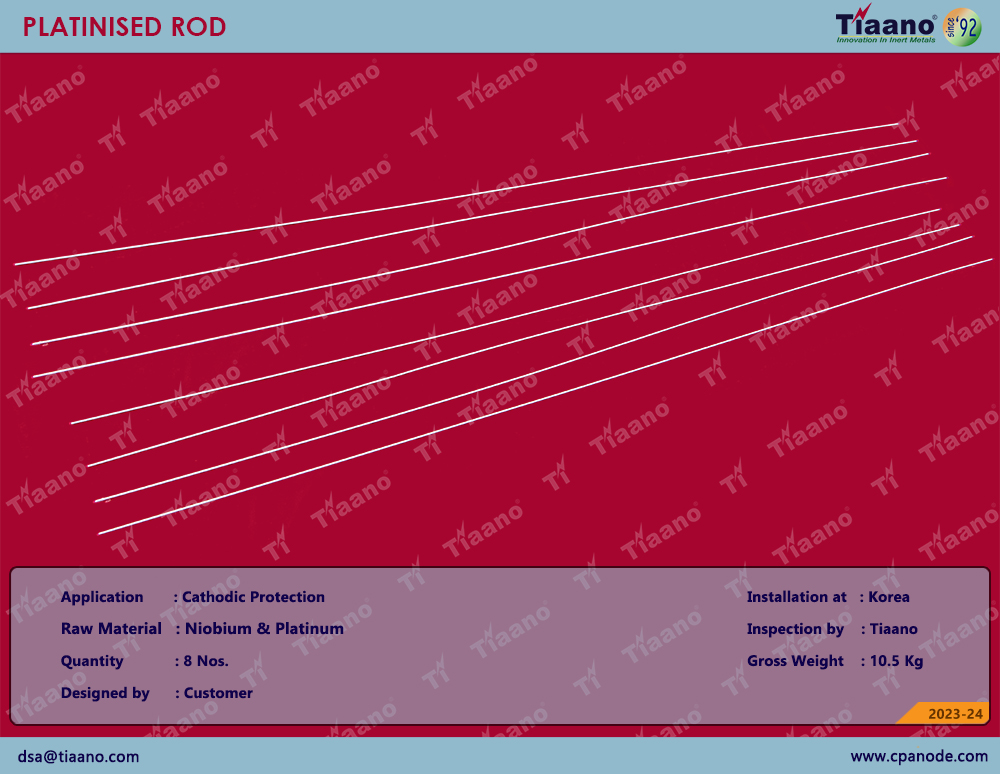

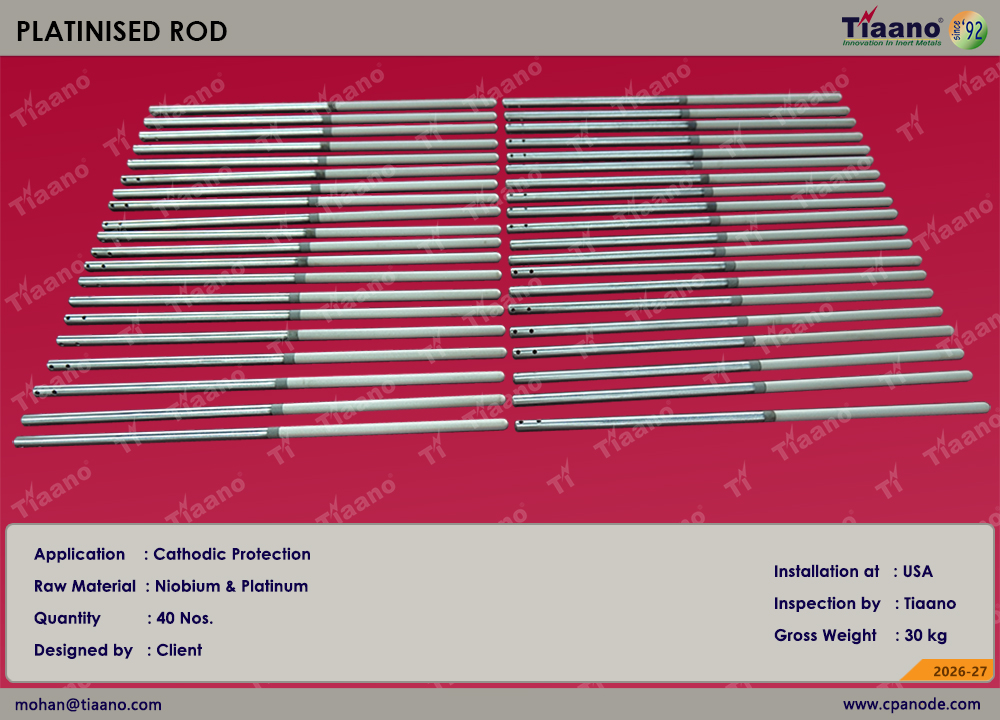

How Tiaano Manufactures High-Performance Platinum Platinised Rod Anodes in India

In demanding marine and industrial environments, catastrophic metal loss caused by electrochemical corrosion poses a constant threat to critical infrastructure. Standard Impressed Current Cathodic Protection (ICCP) systems frequently fail when conventional anode materials undergo rapid consumption, passivation breakdown, or structural degradation under high operating current densities. Tiaano solves these complex durability challenges by manufacturing high-performance Platinised Rod, engineered specifically for extreme-duty Cathodic Protection applications.

The Corrosion Challenge in High-Severity Environments

Unprotected steel structures in seawater, brackish estuarine zones, deep well groundbeds, and aggressive soil environments experience accelerated electrochemical degradation. Conventional anodes often suffer from low breakdown voltage limits, leading to premature insulation failure and costly operational downtime. Ensuring decades of continuous protection requires an anode material capable of maintaining exceptional electrical conductivity and catalytic activity without undergoing excessive degradation.

Engineering Performance: Raw Material Justification

Tiaano utilizes a substrate combination of pure Niobium (Nb) clad with high-purity electroplated Platinum (Pt) to achieve optimal performance:

·         Niobium (Nb) Core Substrate: Offers superior electrical conductivity and a remarkably high anodic breakdown voltage (exceeding 80V in chloride environments). This allows high-voltage ICCP operation without damaging the passive film if the platinum layer is localized.

·         Electrodeposited Platinum Coating: Provides exceptional electrocatalytic efficiency and near-zero consumption rates. The dense platinum layer minimizes operating overpotential while maximizing current output efficiency.

·         High Current Density Capability: Capable of operating effectively at significantly higher current output levels than traditional silicon-iron or graphite anodes.

Technical Specifications & Manufacturing Excellence

Tiaano integrates precision manufacturing processes in India to ensure every Platinised Rod meets rigorous international standards.

Stringent Quality Assurance (QA) Processes

Tiaano enforces meticulous Quality Control (QC) protocols throughout production. Every Platinised Rod undergoes substrate surface preparation, micro-thickness platinum plating inspection (using X-ray fluorescence analysis), thermal adhesion testing, continuous electrical continuity verification, and dimensional accuracy checks prior to export.

Applications Across Critical USA Infrastructure

Tiaano's platinized anodes deliver long-term protection across demanding industrial sectors in the USA:

1.   Offshore & Marine Infrastructure: Steel jetties, harbor piling, offshore platform legs, and submerged marine structures.

2.   Energy & Pipeline Networks: Internal pipe protection, condenser water boxes, power plant cooling intake systems, and deep-well groundbeds.

3.   Industrial Vessels: High-temperature processing vessels, storage tanks, and water treatment equipment requiring durable Cathodic Protection.

Partner with us

With decades of specialized electrochemistry expertise, Tiaano stands as a global leader in high-performance anode manufacturing. By pairing manufacturing capabilities in India with an international distribution footprint, Tiaano supplies world-class Platinised Rod systems to engineering firms, CP contractors, and asset owners across the USA and global markets.

To discuss your project requirements or request technical specifications:

·         Website:www.cpanode.com

·         Email:mohan@tiaano.com

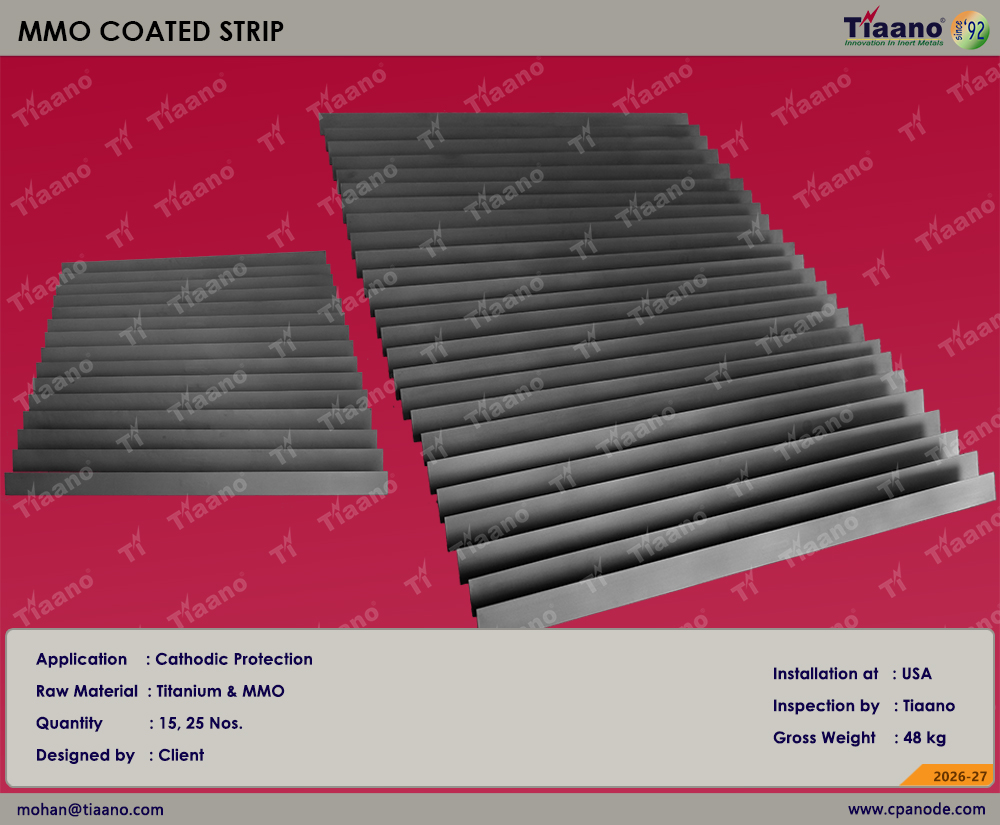

MMO Coated Strip for Cathodic Protection: Industry Standards and Quality Checks by Tiaano

Reliable cathodic protection begins with the right anode—and the right quality controls. In demanding environments, an MMO Coated Strip must provide stable electrochemical performance, strong substrate integrity, and durable coating adhesion. For cathodic protection systems, every component contributes to controlling corrosion and extending the service life of valuable metallic structures.

MMO Coated Strip for Reliable Cathodic Protection

An MMO Coated Strip consists of a titanium substrate engineered with a Mixed Metal Oxide (MMO) coating. Titanium provides an excellent combination of corrosion resistance, mechanical strength, and dimensional stability, while the MMO coating provides the electrochemically active surface required for anodic operation.

For Cathodic Protection, this combination offers a compact and efficient anode configuration suitable for applications where long operating life, controlled current output, and resistance to aggressive electrolytes are important.

Tiaano manufactures MMO Coated Strip solutions with attention to substrate preparation, coating uniformity, dimensional accuracy, and electrical performance. The design can be adapted to project-specific cathodic protection requirements, installation arrangements, and operating environments.

Material Selection and Technical Considerations

The performance of an MMO Coated Strip depends heavily on the quality of both its titanium substrate and MMO coating.

Titanium is selected because of its excellent resistance to corrosion and its ability to function as a stable substrate in demanding electrolytic environments. The MMO coating provides the active electrochemical interface while the titanium substrate supports the overall structure.

Important technical considerations include:

• Titanium substrate grade and material condition
• Strip dimensions and dimensional tolerances
• MMO coating composition and loading
• Coating uniformity and surface coverage
• Coating adhesion and substrate preparation
• Electrical continuity and current-distribution characteristics
• Connection and termination quality
• Resistance to the intended electrolyte and operating environment

These factors are particularly important when an MMO Coated Strip is incorporated into impressed-current cathodic protection systems.

Industry Standards and Quality Checks

Quality assurance for MMO Coated Strip should be aligned with the applicable cathodic protection project specifications and recognized industry practices, including relevant AMPP/NACE requirements where specified by the project.

Typical manufacturing and QA checks can include:

1.   Raw Material Inspection – Verification of titanium substrate material and incoming material documentation.

2.   Dimensional Inspection – Checking strip length, width, thickness, formed sections, and connection dimensions against approved drawings.

3.   Surface Preparation Inspection – Ensuring the titanium surface is appropriately prepared before coating.

4.   Coating Quality Inspection – Examination of MMO coverage, consistency, and visible surface defects.

5.   Adhesion/Coating Integrity Checks – Testing according to the applicable project or coating procedure.

6.   Electrical Testing – Verification of electrical continuity and connection integrity.

7.   Final Inspection – Confirmation of workmanship, dimensions, identification, and documentation before dispatch.

Tiaano Expertise in Cathodic Protection

With expertise in titanium and MMO-based electrochemical products, Tiaano focuses on manufacturing MMO Coated Strip solutions for demanding Cathodic Protection applications. Proper material selection, controlled coating processes, inspection, and project-specific quality documentation help deliver consistent performance.

For MMO Coated Strip requirements in the USA and international markets, connect with Tiaano for application-specific engineering and supply support.

Website:www.cpanode.com
Email:mohan@tiaano.com

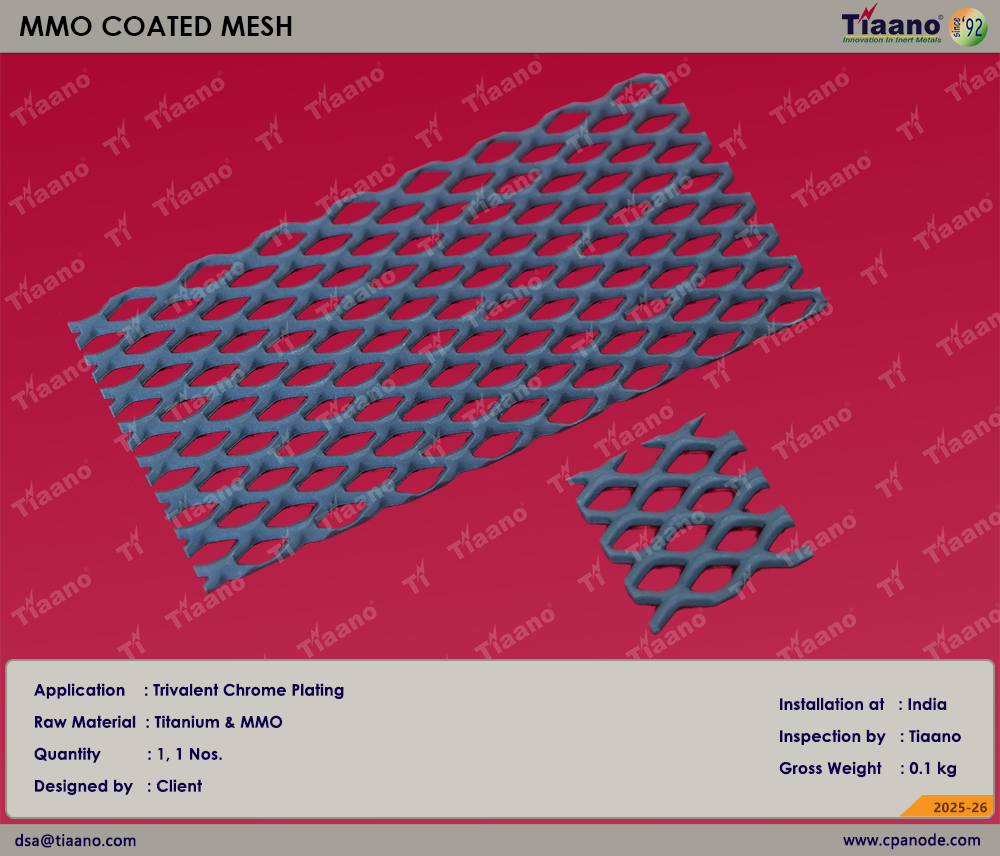

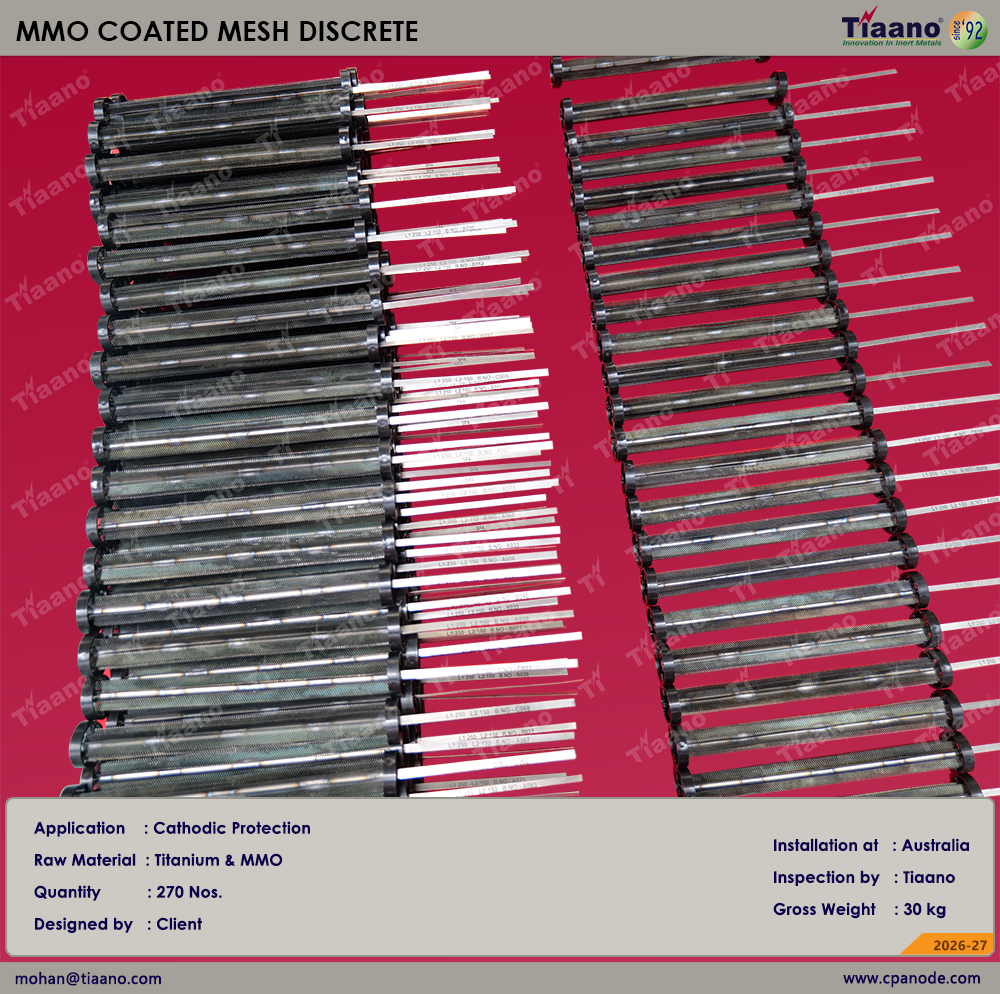

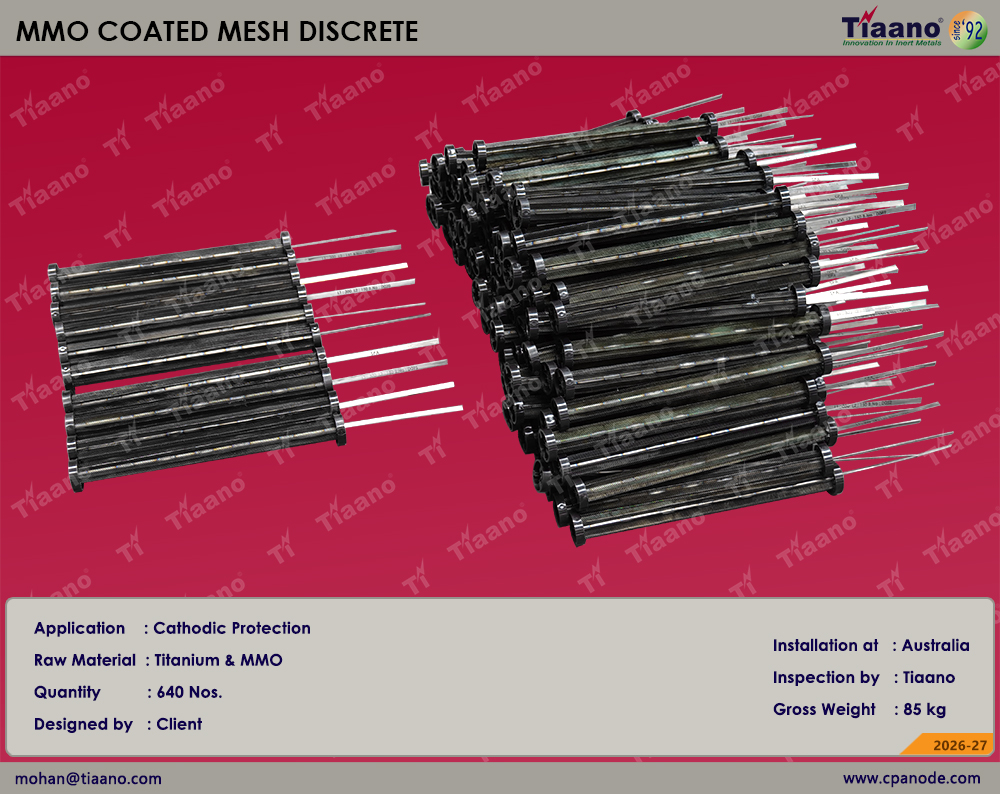

Solving Cathodic Protection Failures in Reinforced Concrete: MMO Coated Mesh Discrete Anodes by Tiaano

Reinforced concrete infrastructure across Australia faces severe structural risks due to chloride-induced corrosion and carbonation. Traditional Cathodic Protection systems often struggle with localized rebar degradation, uneven current distribution, and premature anode consumption in heavily congested reinforced structures. Tiaano addresses these critical challenges with its advanced MMO Coated Mesh Discrete anodes, engineered specifically for high-durability impressed current cathodic protection (ICCP) systems.

The Challenge in Cathodic Protection Infrastructure

Corrosion in marine, industrial, and coastal concrete environments weakens structural integrity long before visual spalling appears. Standard ribbon or tubular anodes frequently suffer from high electrical resistance, hot-spotting, or mechanical displacement during grout encapsulation. Ensuring long-term structural reliability requires uniform current flow directly to dense, targeted rebar zones without compromising structural integrity.

Key Benefits & Technical Specifications

Tiaano's MMO Coated Mesh Discrete systems provide a targeted, robust solution for localized and complex concrete cathodic protection applications.

o  Superior Current Distribution: The mesh structure provides an expanded surface area, lowering anode-to-concrete contact resistance and delivering uniform protective current.

o    Targeted Installation: Discrete positioning allows precise placement in high-corrosion zones, rebar-dense locations, and complex structural joints.

o    Extended Service Life: Engineered for design lives exceeding 50 to 100 years under standard operating current densities.

Material Selection & Technical Properties

ü  Base Substrate: Grade 1 or Grade 2 ASTM B265 Titanium mesh substrate, providing ultra-lightweight strength and exceptional corrosion resistance.

ü  Electrocatalytic Coating: Mixed Metal Oxide (MMO - IrO₂/Ta₂O₅) thermally applied to ensure high electrocatalytic activity, stability, and minimal consumption rates.

ü  Conductor Bar Integration: Integrated pure titanium conductor bars enable seamless spot-welding and continuous electrical connectivity across anode zones.

ü  Ribbed Insulating Spacers: Integrated non-conductive rib spacers ensure precise concentric positioning within drilled slots or boreholes, preventing direct short-circuiting against structural steel reinforcement.

Quality Assurance & Manufacturing Excellence

Tiaano enforces stringent Quality Assurance (QA) and Quality Control (QC) protocols throughout production. Every MMO Coated Mesh Discrete anode undergoes rigorous substrate surface preparation, precision thermal coating deposition, adhesion testing, accelerated life testing (NACE TM0294/ISO 12696 standards), and dimensional verification to guarantee optimal field performance.

Applications Across Australian Infrastructure

Tiaano’s discrete anode solutions excel in critical asset preservation across Australia:

1.   Marine Structures: Jetty piles, wharf decks, seawalls, and port infrastructure exposed to severe tidal zones.

2.   Civil & Transportation: Bridge decks, substructures, multi-story parking facilities, and underground tunnels.

3.   Industrial Assets: Foundation slabs, water treatment facilities, and coastal industrial plants.

Partner with Tiaano

Tiaano brings decades of electrochemistry expertise to the global market, supplying high-performance Cathodic Protection materials and engineered anode systems worldwide. Through strong industry partnerships across Australia and global markets, Tiaano ensures long-term asset preservation for critical concrete structures.

To discuss your project requirements or request detailed datasheets:

·         Website:www.cpanode.com

·         Email:mohan@tiaano.com

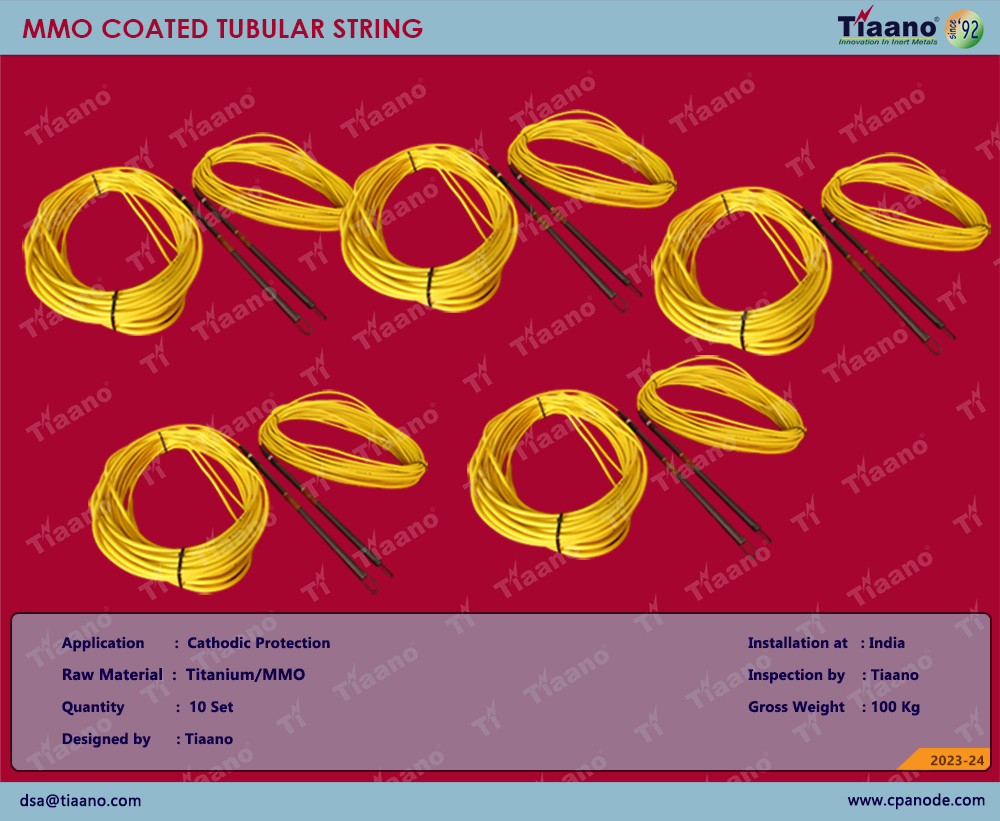

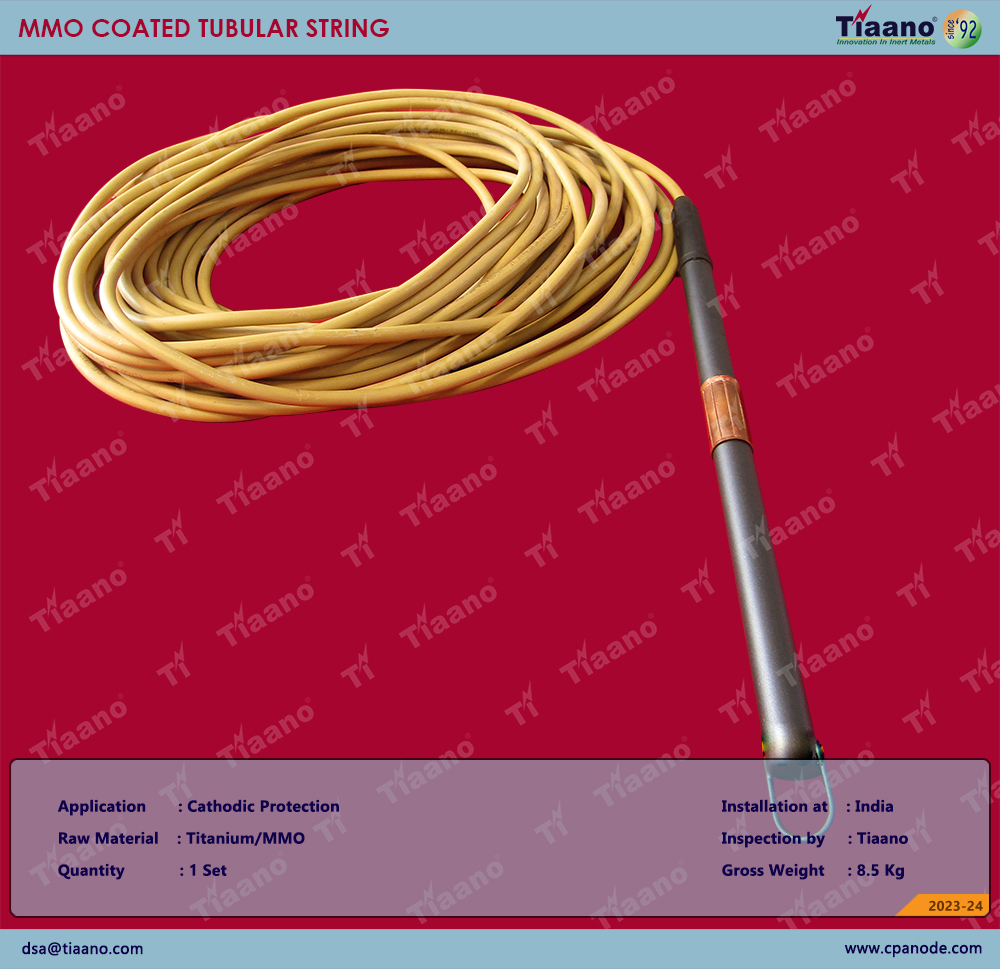

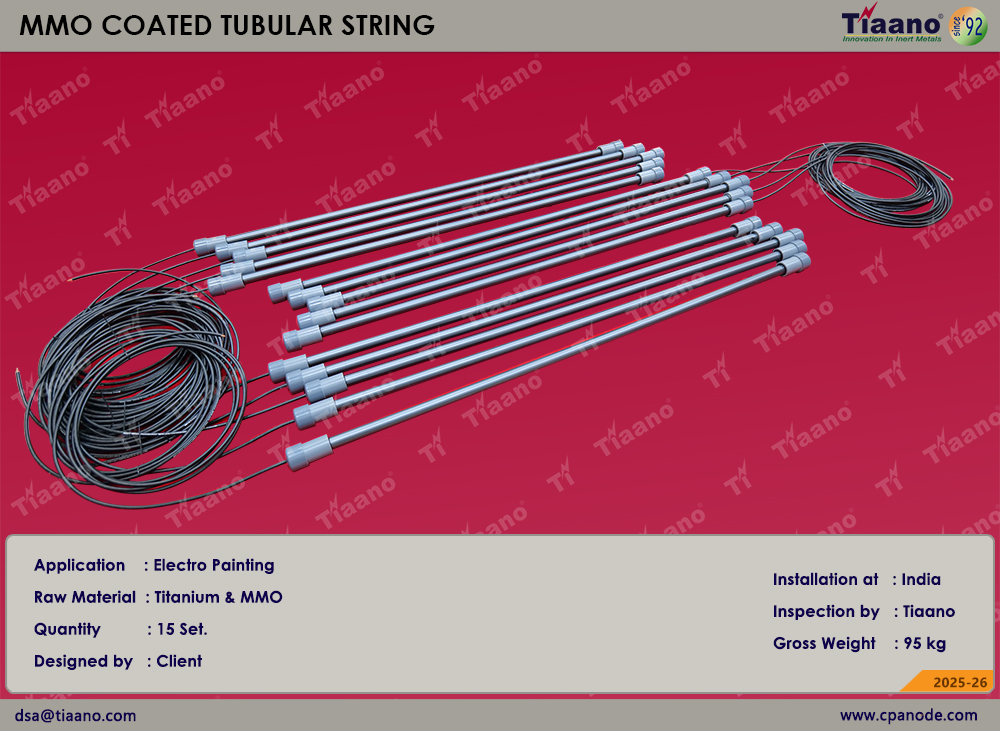

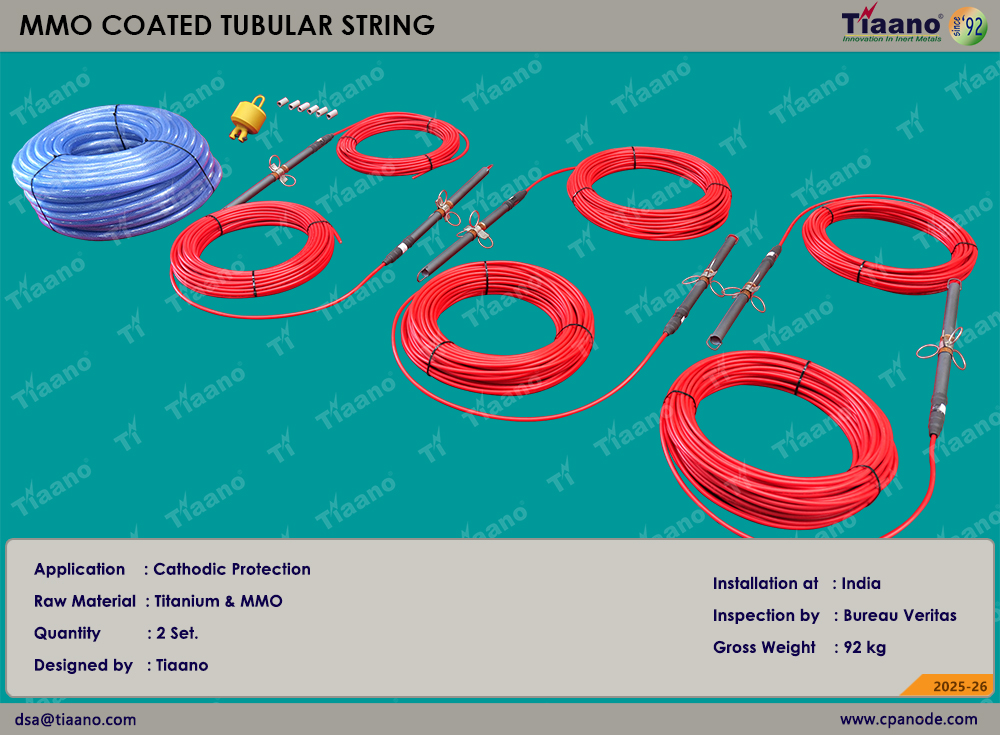

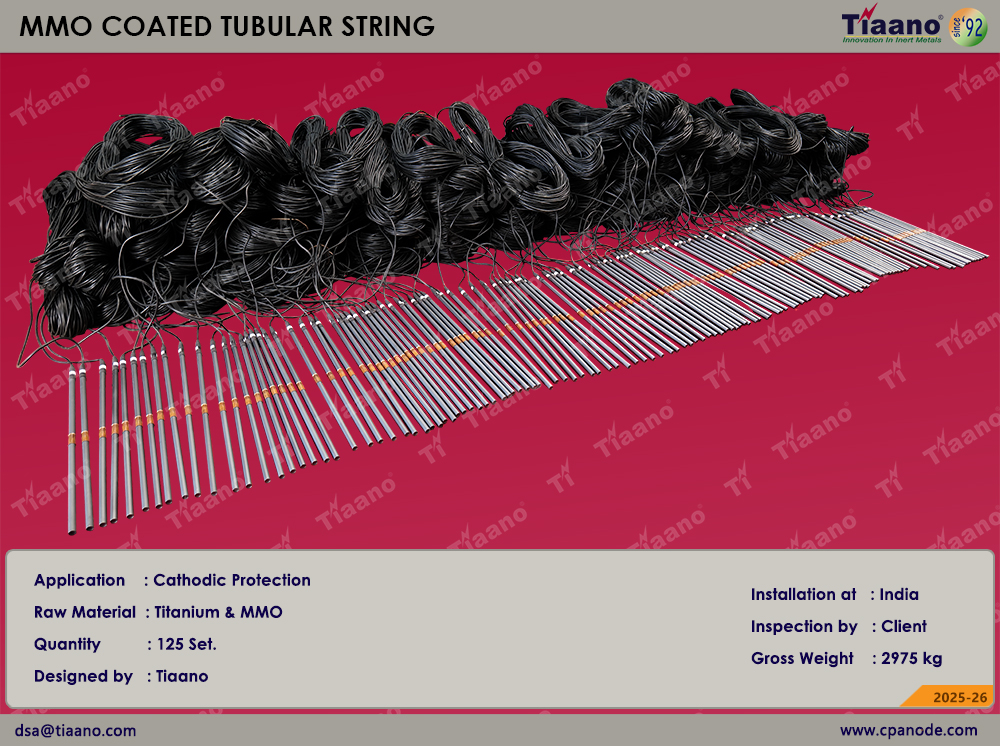

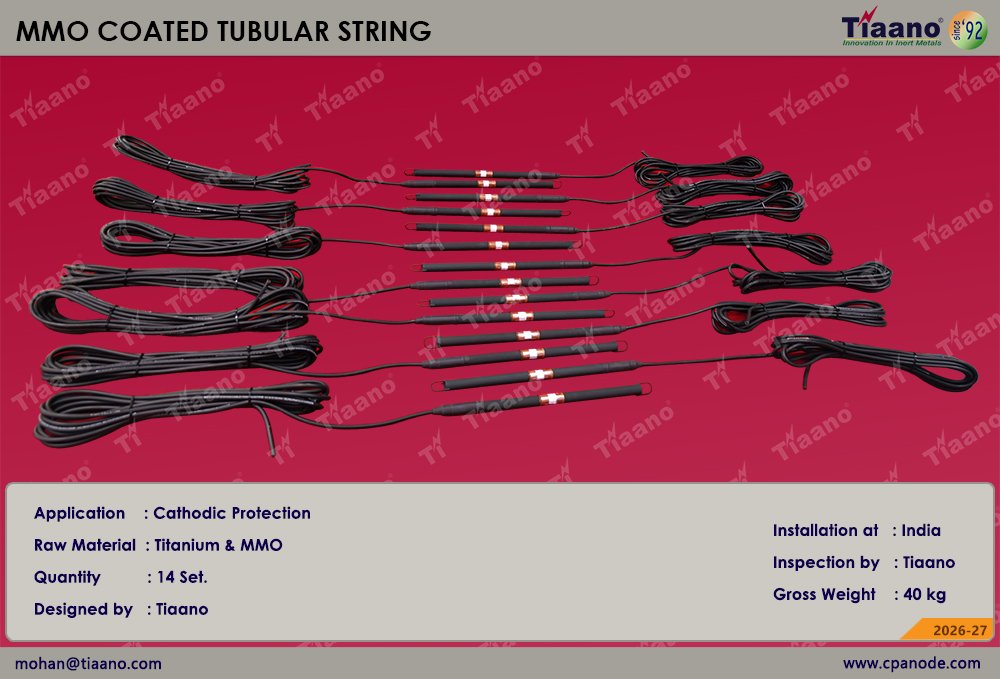

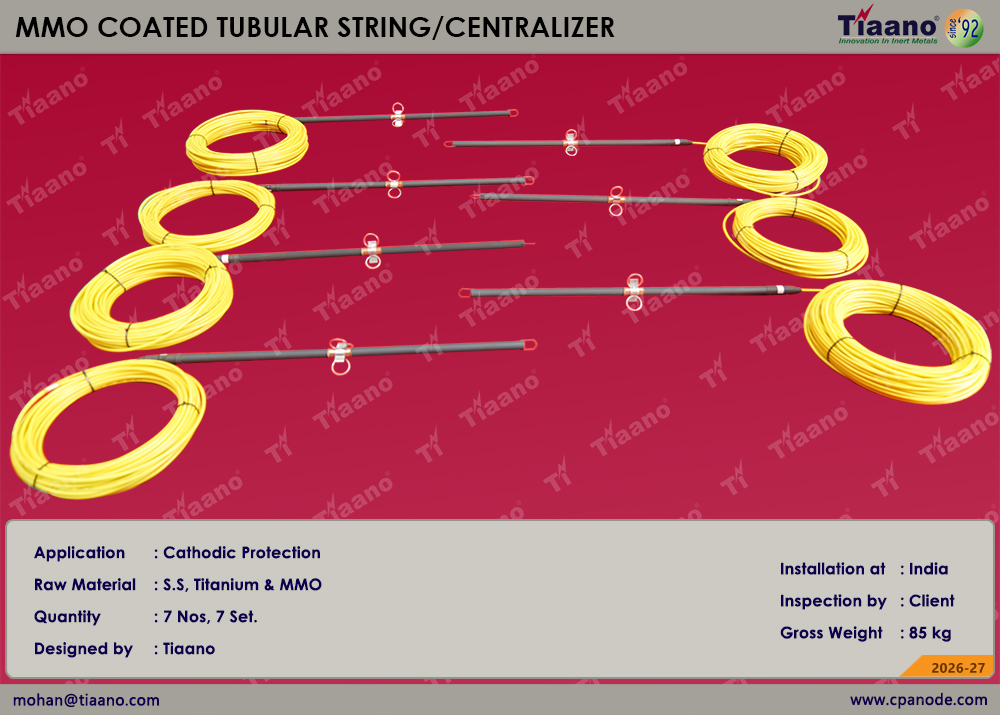

MMO Coated Tubular String for Reliable Cathodic Protection | Tiaano

Corrosion does not always announce itself before affecting the service life of a pipeline, tank, marine structure or buried metallic asset. Once electrochemical attack begins, controlling the environment around the protected structure becomes an important part of asset management. This is where a carefully engineered MMO Coated Tubular Stringcan become an important component of a Cathodic Protection system.

Rather than treating the anode as a simple consumable part, engineers need to consider its construction, coating, electrical connection and suitability for the intended operating environment. An MMO Coated Tubular String is built around a titanium substrate carrying a mixed metal oxide coating. This material combination creates an engineered anode surface intended for impressed-current cathodic protection applications.

The engineering starts with the substrate

Titanium is not selected merely because it is lightweight. Its resistance to corrosion and ability to serve as a stable substrate make it suitable for electrochemical anode construction. The MMO coating provides the active surface through which the required anodic reaction can take place.

For an MMO Coated Tubular String, the quality of the interface between titanium and MMO is therefore an important manufacturing consideration. Surface preparation, coating application and process control can influence the consistency of the finished component.

Why a tubular form?

The tubular configuration offers engineers a compact cylindrical anode geometry that can be incorporated individually or into string arrangements. Depending on the system design, tubular anodes can be considered for groundbeds and other cathodic protection installations involving soil, freshwater, brackish water or marine environments.

This flexibility is particularly useful when the protection system has to be developed around existing infrastructure and site conditions. The anode arrangement can be determined according to the required current distribution, electrolyte characteristics and overall cp design rather than selecting a component in isolation.

Manufacturing has a direct role

A technically suitable MMO Coated Tubular String begins with controlled manufacturing. Titanium preparation, MMO coating uniformity, dimensional accuracy, connection integrity and final inspection all need attention before the product reaches a cathodic protection project.

This is where manufacturer experience becomes valuable. Tiaano, an indian manufacturer specializing in titanium and electrochemical products, brings its manufacturing knowledge into the production of MMO-based components for industrial applications.

The objective is not simply to produce an MMO Coated Tubular String, but to manufacture a component that can be integrated confidently into an engineered cathodic protection system.

Selecting the product for the application

There is no single anode configuration that suits every cp installation. Engineers should evaluate the electrolyte, protection requirement, installation arrangement, current demand and intended operating conditions before final selection. Published technical data also demonstrates that anode performance can vary substantially with the surrounding environment and operating conditions.

For projects where material reliability, controlled manufacturing and application-specific engineering matter, an MMO Coated Tubular String offers a practical route for incorporating titanium-MMO technology into cathodic protection.

Need an MMO coated tubular string manufactured in india for your next cathodic protection project? Contact tiaano to discuss your application, technical requirements and project needs.

Website:www.cpanode.com
email:mohan@tiaano.com

Replacing Deep Well Anodes Every 3 Years Is Costing You 4x More Than the Initial Installation

Nearly 65% of lifetime impressed current cathodic protection (ICCP) expenditure goes straight into repetitive excavation, drilling, and cable replacement overhead rather than the anode hardware itself.

When conventional high-silicon cast iron or graphite anodes wear out unevenly, the resulting current drop exposes buried assets to aggressive oxidation—forcing costly premature deep-well replacements.

Upgrading to an advanced MMO Coated Tubular String shifts your corrosion management from a recurring expenditure sink to a long-term capital investment.

The Financial Drain of Traditional Cathodic Protection Systems

Legacy groundbed installations rely on heavy, high-consumption anode materials that present severe financial drawbacks over time:

·         Excessive Weight & Rigging Expenses: Massive cast iron anodes require heavy machinery, driving up installation shipping and mobilization costs.

·         Premature Cable-to-Anode Failure: Environmental moisture penetrates traditional junction seals, causing localized cable connection burnout long before the anode material depletes.

·         High Electrical Resistivity: Lower current discharge efficiency demands higher transformer-rectifier power output, driving up monthly utility bills.

·         Non-Uniform Dissolution: Consumption hot spots cause premature structural snapping, leaving substantial unused anode material isolated underground.

Using a titanium-substrate MMO Coated Tubular String eliminates structural breakage risks and offers low current attenuation over decades of continuous operation.

Cost & Performance Comparison: Legacy Anodes vs. MMO Tubular Strings

Case Study: Upstream Pipeline Groundbed ROI Overhaul

A major energy infrastructure operator in India managed a 120 km buried steel transmission line plagued by rapid cathodic protection failure due to high-resistivity soil and seasonal water table fluctuations.

Before the Upgrade

1.   Cast iron deep groundbeds required full replacement every 4.5 years due to necking failures.

2.   Monthly power draw across 12 rectifier stations was costing over ₹3,80,000.

3.   System downtime during groundbed re-drilling averaged 18 days annually.

After Installing MMO Coated Tubular Strings

1.   Total current output stabilized with zero performance degradation over a 5-year monitoring period.

2.   Rectifier energy consumption dropped by 32% due to lower anode-to-earth resistance.

3.   Projected groundbed lifespan extended to 25+ years without maintenance intervention.

Broad Industry Deployment

Engineered for extreme environmental endurance, high-performance cathodic protection strings protect critical metallic assets across various industries:

1.   Oil & Gas Refineries: Shields deep-well casing pipes and cross-country fuel transmission lines.

2.   Marine & Off-Shore Terminals: Protects steel jetty piling, dock structures, and offshore platform legs.

3.   Municipal Water Infrastructure: Extends the service life of buried steel water mains and storage tank bottoms.

4.   Power Generation & Chemical Plants: Prevents subsurface piping grid degradation in highly conductive soils.

Manufactured in India using premium titanium substrate coated with Mixed Metal Oxide, these string assemblies deliver consistent current distribution with minimal lifecycle cost.

For technical specifications or project design assistance, visit www.cpanode.com or contact mohan@tiaano.com.

The CP System Was Working—Until the Electrodes Became the Maintenance Problem

The cathodic protection system was still delivering current, but the maintenance team had started noticing a different pattern: more frequent inspections, increasing concern over electrode condition, and less confidence in how long the installed anodes would remain effective.

Replacing electrodes was no longer just a maintenance task. With hundreds of discrete units installed across a protected asset, every replacement meant labor, access planning and potential disruption.

This is where MMO Coated Mesh Discrete can offer a different maintenance strategy.

Designed for Long-Term Cathodic Protection

The MMO Coated Mesh Discrete supplied by Tiaano uses a Titanium + MMO construction.

Instead of relying on a conventional bare metallic electrode surface, the system combines a titanium substrate with an MMO coating engineered for electrochemical service.

For plant engineers, the advantage is not simply the material itself. It is the combination of:

·         Corrosion-resistant titanium construction

·         MMO-coated active surface

·         Discrete electrode configuration

·         Application-specific fabrication

·         Suitability for distributed cathodic protection systems

The electrode shown is part of a substantial installation involving 640 discrete units in Australia, demonstrating how this type of electrode can be incorporated into large-scale CP projects.

MMO Discrete vs Conventional Electrode Approaches

Traditional CP electrodes may require more frequent attention when their material gradually consumes or their condition changes during service.

An MMO-coated titanium electrode approaches the problem differently.

Conventional approach

·         Electrode material may gradually be consumed

·         Replacement planning can become a recurring maintenance issue

·         Electrode dimensions can change with service

·         Large installations may require significant replacement effort

MMO Coated Mesh Discrete

·         Titanium provides a stable structural substrate

·         MMO coating provides the active electrochemical surface

·         Discrete construction allows electrodes to be distributed across the protected area

·         Long-term condition monitoring can be incorporated into maintenance planning

The actual service life depends on current density, electrolyte chemistry, temperature, coating quality, installation conditions and operating duty. Therefore, electrode life should always be established from the project's specific parameters rather than a generic lifespan claim.

Where Discrete MMO Electrodes Can Fit

Depending on the CP design, similar electrode technology can be considered for:

1.   Buried pipelines

2.   Marine infrastructure

3.   Storage and process facilities

4.   Water-treatment assets

5.   Industrial structures

6.   Large distributed cathodic protection systems

The electrode arrangement should be selected according to current requirements, protected surface area, soil or electrolyte conditions and system design.

What Plant Managers Should Monitor

For a long-term CP program, track:

·         CP current output

·         Structure-to-electrolyte potential

·         Electrode performance

·         Coating condition

·         Electrical connections

·         Inspection intervals

·         Replacement requirements

These measurements turn electrode maintenance from a reactive activity into a planned asset-management process.

A cathodic protection electrode should not be evaluated only by its purchase price.

The MMO Coated Mesh Discrete, combining Titanium + MMO, provides an engineered option for projects where durable electrochemical performance and controlled maintenance are important.

For cathodic protection electrode requirements, visit www.cpanode.com or contact mohan@tiaano.com.

The Smallest Component Can Decide Whether Cathodic Protection Is Telling the Truth

A cathodic protection system can be supplying current exactly as designed—and still leave engineers with the wrong impression if the reference electrode is not providing reliable potential measurements.

That makes the Reference Electrode more than a monitoring accessory. It is the measurement point that helps engineers determine whether the protected structure is actually receiving the required level of electrochemical protection.

For cathodic protection systems, Tiaano’s Reference Electrode, manufactured using zinc, is designed to provide a practical reference point for monitoring structure-to-electrolyte potential.

The Technical Insight: Protection Depends on Measurement

Cathodic protection systems are commonly controlled or assessed using potential measurements.

If the reference point is unreliable, engineers may respond to incorrect information.

This can lead to:

• Unnecessary adjustment of protection current
• Inadequate protection caused by underestimation
• Excessive current caused by overestimation
• Difficulty troubleshooting CP performance
• Uncertainty during periodic inspections

The reference electrode therefore plays a critical role in the measurement chain.

Its job is not to protect the structure directly. Instead, it provides the electrochemical reference against which the structure's potential can be evaluated.

Reference Electrode vs Conventional Monitoring Approaches

Traditional monitoring arrangements can involve temporary reference electrodes or measurement methods that are inconvenient for repeated field assessments.

A dedicated reference electrode offers a more practical approach when long-term monitoring is required.

Conventional or temporary approach

• Reference point may need repeated positioning
• Measurements can be less convenient
• Field access may complicate inspections
• Consistency between measurement locations can become a concern

Dedicated Reference Electrode

• Installed as part of the CP monitoring arrangement
• Provides a defined measurement reference
• Supports repeated potential measurements
• Can simplify routine inspection activities
• Suitable for integration with cathodic protection monitoring systems

The objective is not simply to replace one electrode with another. It is to make the measurement process more consistent and useful for maintenance decisions.

A Realistic Case Study: From Uncertainty to Better Monitoring

Consider a buried pipeline facility where the cathodic protection system is functioning, but periodic potential readings vary more than expected.

Before

The maintenance team spends additional time checking connections and repeating measurements.

The uncertainty makes it difficult to determine whether the variation originates from the CP system, the structure, or the measurement arrangement.

After

A dedicated zinc Reference Electrode is installed at the required monitoring location.

The team now has a defined reference point for repeated measurements.

The practical improvement is clear:

Before: repeated measurements with uncertainty around the reference condition.

After: a consistent monitoring point that helps engineers compare potential readings over time.

This does not eliminate every CP measurement variable, but it can make trend analysis and troubleshooting considerably more structured.

Where Reference Electrodes Matter

Reference electrodes can support monitoring requirements across several cathodic protection applications, including:

1.   Pipelines – monitoring buried or submerged metallic structures.

2.   Storage tanks – assessing protection around tank-bottom systems.

3.   Marine structures – supporting potential measurements on submerged assets.

4.   Industrial plants – monitoring corrosion-control systems around process infrastructure.

5.   Water infrastructure – supporting CP assessment for metallic components exposed to electrolytes.

The correct reference electrode selection depends on the electrolyte, installation environment, measurement requirements and CP design.

What Engineers Should Consider

Before selecting a reference electrode, review:

• Application environment
• Required installation depth or position
• Cable routing requirements
• Expected exposure conditions
• Measurement frequency
• Compatibility with the CP monitoring system
• Required reference material

For this Reference Electrode, zinc is used as the raw material, while the electrode is designed specifically for cathodic protection monitoring requirements.

The Engineering Takeaway

Cathodic protection is ultimately a controlled electrochemical process, and good control depends on dependable measurements.

A properly selected Reference Electrode helps engineers establish a consistent basis for evaluating structure potential, identifying changes and making informed maintenance decisions.

For plant managers, the value is straightforward: better measurement can lead to better CP decisions.

For cathodic protection electrode and monitoring requirements, visit www.cpanode.com or contact mohan@tiaano.com.
