High-Performance Zinc Reference Electrode Manufactured and Supplied by Ti Anode Fabricators Pvt. Ltd. for Cathodic Protection
The Hidden Risk: Inaccurate Potential Measurement Threatens Asset Integrity
In cathodic protection systems, precise monitoring of structure-to-electrolyte potential is the cornerstone of effective corrosion control. A drifting or unreliable reference electrode can lead to over-protection (wasting energy and risking hydrogen embrittlement) or under-protection (allowing corrosion to progress unnoticed). For offshore platforms, pipelines, storage tanks, and marine structures, even minor inaccuracies can result in millions in repair costs or environmental incidents. Ti Anode Fabricators Pvt. Ltd. (Tiaano), a globally trusted name in corrosion control solutions, addresses this critical challenge with premium Zinc Reference Electrodes engineered for long-term stability in cathodic protection applications.
Reliable Monitoring Starts with the Right Reference Electrode
Our Zinc Reference Electrode provides a stable, low-maintenance half-cell potential ideal for seawater and high-chloride environments commonly encountered in cathodic protection installations.
Precise Technical Specifications:
- Overall Dimensions: Diameter 10 mm × 172 mm long
- Active Length: Diameter 10 mm × 25 mm long (high-purity zinc core)
- Construction: High-purity Zinc electrode body with integrated copper cable lead and protective encapsulation
This compact, robust design of the Zinc Reference Electrode ensures consistent performance in aggressive marine and soil conditions, delivering dependable potential readings for accurate cathodic protection system control.

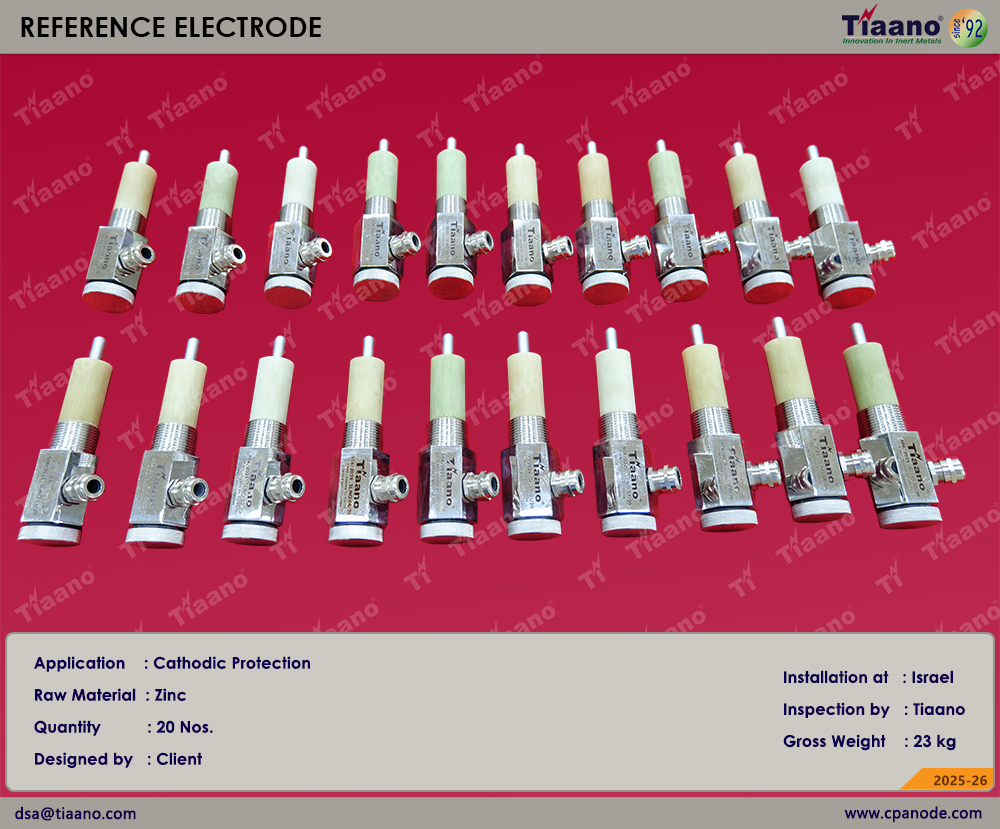

Proven Reliability – Successfully Deployed in Israel
Ti Anode Fabricators Pvt. Ltd. has manufactured and supplied batches of Zinc Reference Electrodes for major cathodic protection projects in Israel, including coastal infrastructure and offshore assets. These installations continue to provide stable reference potentials with minimal drift, even after prolonged exposure to seawater chlorinity and temperature fluctuations.
Why High-Purity Zinc is the Preferred Choice for Marine Cathodic Protection
The Zinc Reference Electrode uses high-purity zinc as the active material due to its exceptional electrochemical stability in chloride-rich electrolytes:
- Natural potential of approximately –1.10 V vs. Cu/CuSO₄ (highly negative and consistent)
- Excellent resistance to polarization and self-discharge in seawater
- Low temperature coefficient for reliable readings across seasonal variations
- Long operational life with predictable, slow consumption rate
Unlike silver/silver chloride electrodes (which can suffer from contamination or photo-degradation) or copper/copper sulfate electrodes (prone to drying out in tidal zones), the Zinc Reference Electrode excels in permanent submersion and offers superior longevity in cathodic protection monitoring.
Rigorous Quality Assurance – Built for Critical Applications
Every Zinc Reference Electrode from Ti Anode Fabricators Pvt. Ltd. passes through a stringent quality regimen:
- High-purity zinc certification (99.99% minimum) with chemical composition analysis
- Precision machining of the active zinc surface to eliminate impurities
- High-integrity cable connection with epoxy sealing and strain relief
- Electrical potential stability testing in simulated seawater
- Leakage and insulation resistance verification
- Final dimensional inspection and individual serial numbering for traceability
This meticulous process guarantees that each Zinc Reference Electrode maintains accuracy and stability throughout its service life in demanding cathodic protection environments.
Safeguard Your Assets with Accurate, Drift-Free Monitoring
By installing Tiaano’s Zinc Reference Electrode, operators gain confidence in real-time potential data, enabling optimized current output, extended asset life, reduced maintenance, and full compliance with standards like NACE SP0169 and ISO 15589.
Eliminate Monitoring Uncertainty – Choose Proven Zinc Reference Technology
Don’t let unreliable reference electrodes compromise your cathodic protection performance. Partner with Ti Anode Fabricators Pvt. Ltd. for the most dependable Zinc Reference Electrode manufactured and supplied for marine and industrial applications.
Protect your infrastructure today! Visit: www.cpanode.com Email: dsa@tiaano.com
Request your technical datasheet, custom configurations, or immediate quotation to ensure precise, long-term cathodic protection monitoring.
