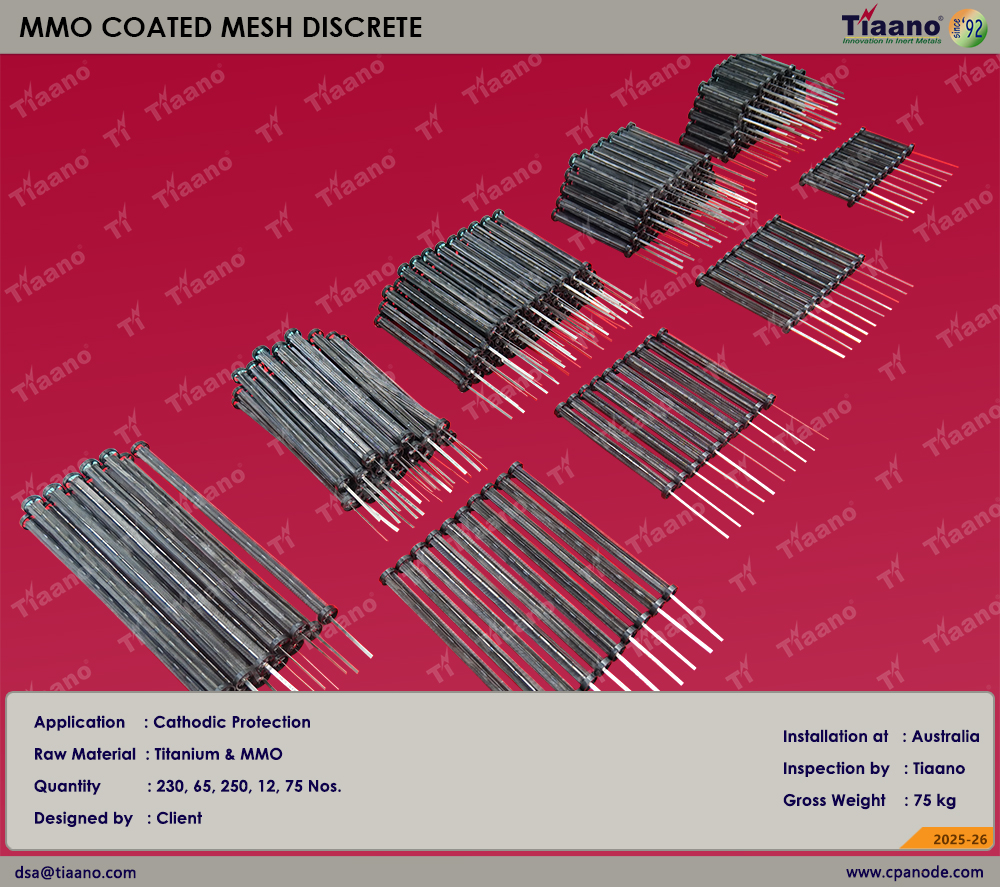

Technical Excellence in Corrosion Mitigation: The Power of MMO Coated Mesh Discrete Anodes

In the high-stakes world of structural engineering, the silent decay of reinforced concrete is not merely a maintenance headache—it is a catastrophic structural failure waiting to happen. MMO Coated Mesh Discrete Anodes represent the pinnacle of modern electrochemical defense, providing a proactive shield that effectively halts the ingress of chlorides and prevents the oxidation of steel reinforcement in critical infrastructure.

Why Choose MMO Coated Mesh Discrete Anodes?

These anodes provide a highly concentrated and uniform current distribution, specifically engineered for compact structures where traditional ribbon anodes might lead to grout acidification. With an exceptionally low wear rate and a design life that can exceed 100 years, they offer a "fit-and-forget" solution for long-term structural integrity.

Manufacturer Highlight: Ti Anode Fabricators Pvt. Ltd.

As a global leader in electrochemical solutions, Ti Anode Fabricators Pvt. Ltd. (Tiaano®) has been at the forefront of titanium fabrication since 1992. Our expertise lies in the precision application of Mixed Metal Oxide (MMO) coatings onto high-grade titanium substrates. By leveraging state-of-the-art in-plant facilities and a team of specialized engineers, we deliver MMO Coated Mesh Discrete Anodes that meet the most rigorous international quality standards, including NACE and ASTM.

Critical Application in Infrastructure

Cathodic Protection utilizing discrete anodes is primarily employed in the rehabilitation of reinforced concrete elements located in aggressive marine or industrial environments. These are particularly vital for structures in tidal, splash, and atmospheric zones—such as bridge piers, wharves, and high-rise columns—where moisture and chloride levels are consistently high.

Function and Strategic Importance

The core role of the MMO Coated Mesh Discrete Anode is to act as the primary positive electrode in an Impressed Current Cathodic Protection (ICCP) system. By applying a controlled direct current, the anode forces the embedded steel to act as a cathode, effectively suppressing the anodic dissolution of iron. This process not only stops existing corrosion but also draws harmful chloride ions away from the steel surface, preserving the structure's load-bearing capacity for decades.

Technical Specifications

Our MMO Coated Mesh Discrete Anodes are engineered with the following high-tier specifications:

·         Substrate Material: Commercially Pure Titanium (ASTM B265 Grade 1 or 2).

·         Coating Catalyst: Noble Mixed Metal Oxides (Iridium, Tantalum, and Ruthenium formulations).

·         Design Form: Tubular or cylindrical mesh assemblies tailored to specific hole diameters.

·         Typical Dimensions: Customizable diameters (e.g., 25mm) and lengths (e.g., 100mm to 400mm) based on site requirements.

·         Current Capacity: High current density outputs reaching up to 110 mA/m² in concrete environments.

·         Design Life: Standard 50 to 100-year longevity depending on coating loading.

Raw Material Justification: Titanium + MMO

The choice of Titanium as a substrate is justified by its superior strength-to-weight ratio and its ability to form a protective, non-conductive oxide film if the coating is damaged, preventing substrate corrosion. When fused with our proprietary MMO coating, the resulting electrode becomes dimensionally stable and chemically resistant even in highly acidic conditions common during the electrochemical process.

Application List

·         Bridge Piles and Decking: Protecting critical transport links from de-icing salts and marine spray.

·         Marine Wharves and Piers: Combating extreme chloride ingress in tidal zones.

·         Industrial Cooling Towers: Resisting chemical-rich environments in power and manufacturing plants.

·         Historic Buildings: Non-invasive corrosion control for heritage concrete structures.

·         Submerged Foundations: Ensuring the longevity of offshore platform substructures.

Quality and Reliability

We understand that structural safety is paramount. Every MMO Coated Mesh Discrete Anode undergoes stringent testing, including coating thickness validation and accelerated life testing. We actively encourage Customer Inspection at our Chennai facility to validate quality before dispatch. With a massive inventory and an optimized production cycle, Ti Anode Fabricators Pvt. Ltd. ensures fast delivery and reliable service to keep your infrastructure projects on schedule.

Future Partnerships

Having dispatched high-performance anodes to major infrastructure projects globally, we invite civil engineering firms, maritime authorities, and industrial consultants to explore the benefits of our technology. Whether you are managing new construction or a rehabilitation project, our team is ready to provide customer-specific designs for your Cathodic Protection needs.

 Elevate your structural durability with industry-leading expertise. Visit our technical hub at www.cpanode.com or reach out to our engineering team directly at dsa@tiaano.com.
